24vdc Relay

+1

Audio & Music Accessories

Type

Brand New

Condition

24VDC Relay

Brand

Delivery

Across country

1-3 days

ETB 150 - 500

Store address

Addis Ababa • Yeka

Megenagnea

Closed now

• Mon - Sat, 09:00-12:00

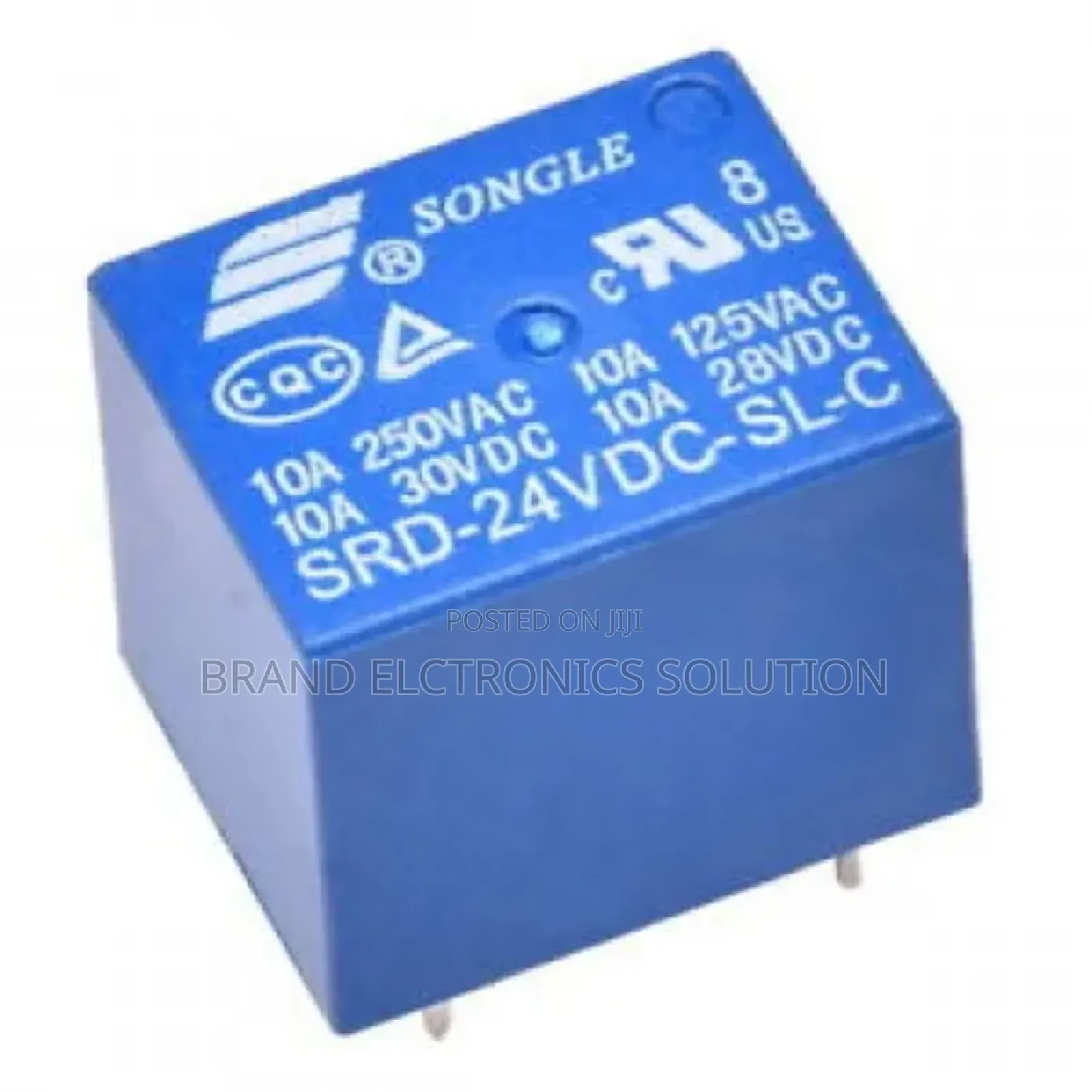

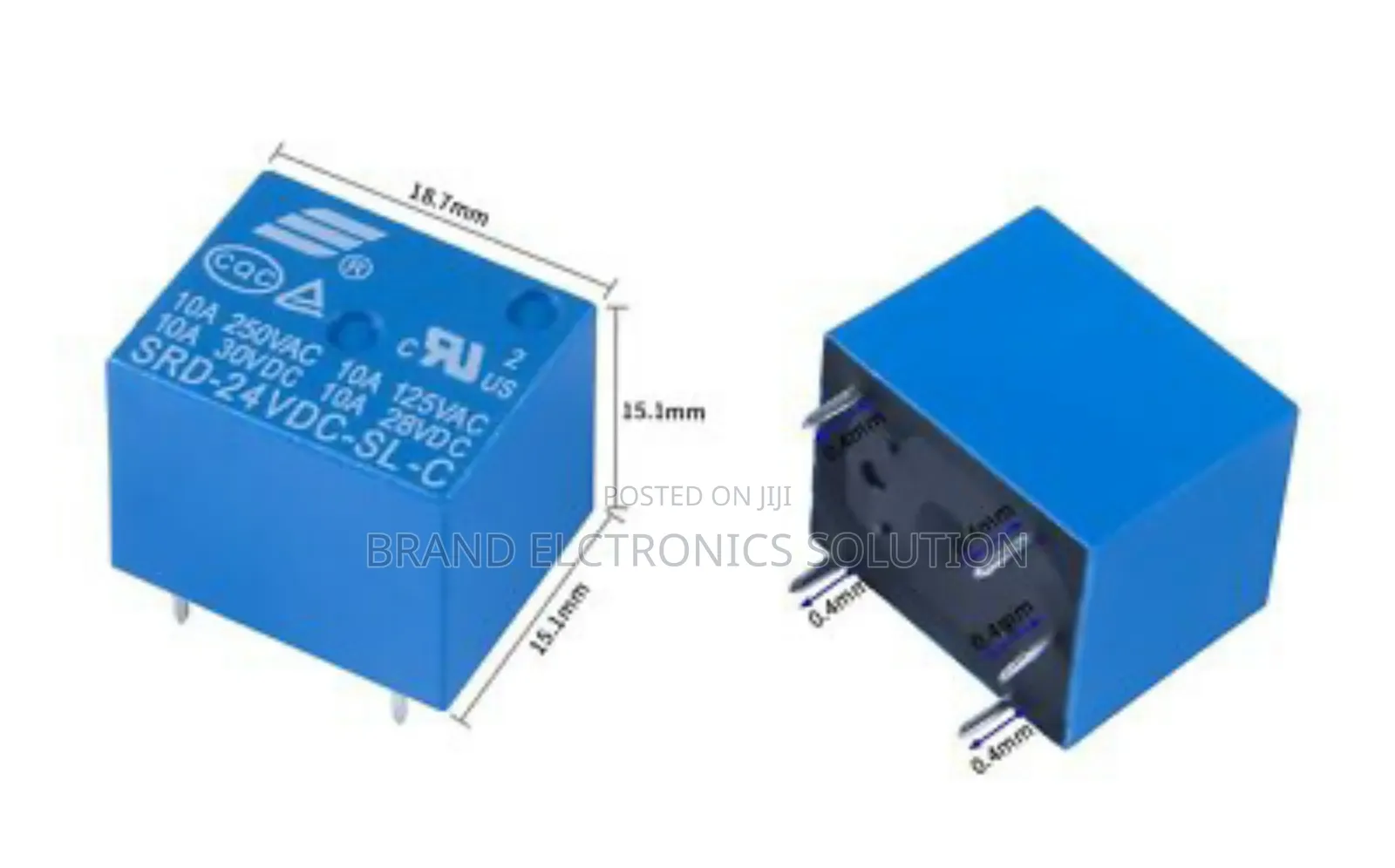

Part number: srd-24vdc-sl-c key function the srd-24vdc-sl-c is a 24 v dc coil-powered electromechanical relay designed to switch moderate ac/dc loads via an isolated control circuit. it’s a single-pole, double-throw (spdt) relay — also called 1 form c, meaning it has a common (com), normally open (no), and normally closed (nc) contact. electrical & mechanical specifications coil voltage: 24 v dc (nominal) coil power: ~0.36 w typical. coil resistance: ~1.6 kω (approx, based on 24 v & 0.36 w). max switching voltage: up to 250 vac or similar dc ratings. max switching current: up to 10 a resistive. max switching power: ~3750 va (ac). contact resistance: ~100 mω (measured at 1 a, 6 v dc). approx dimensions: ~19.2 mm × 15.6 mm × ~15.8 mm.
