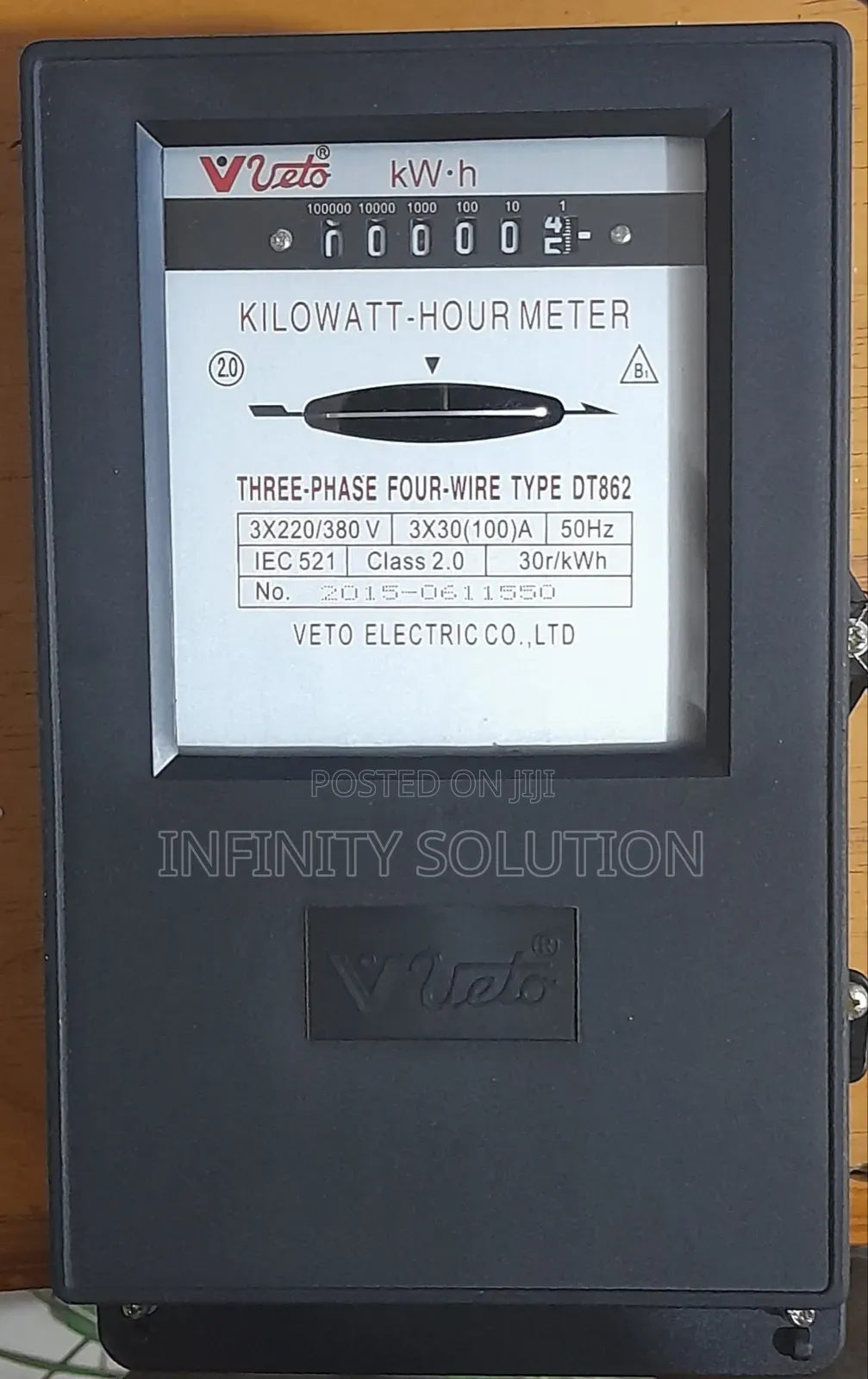

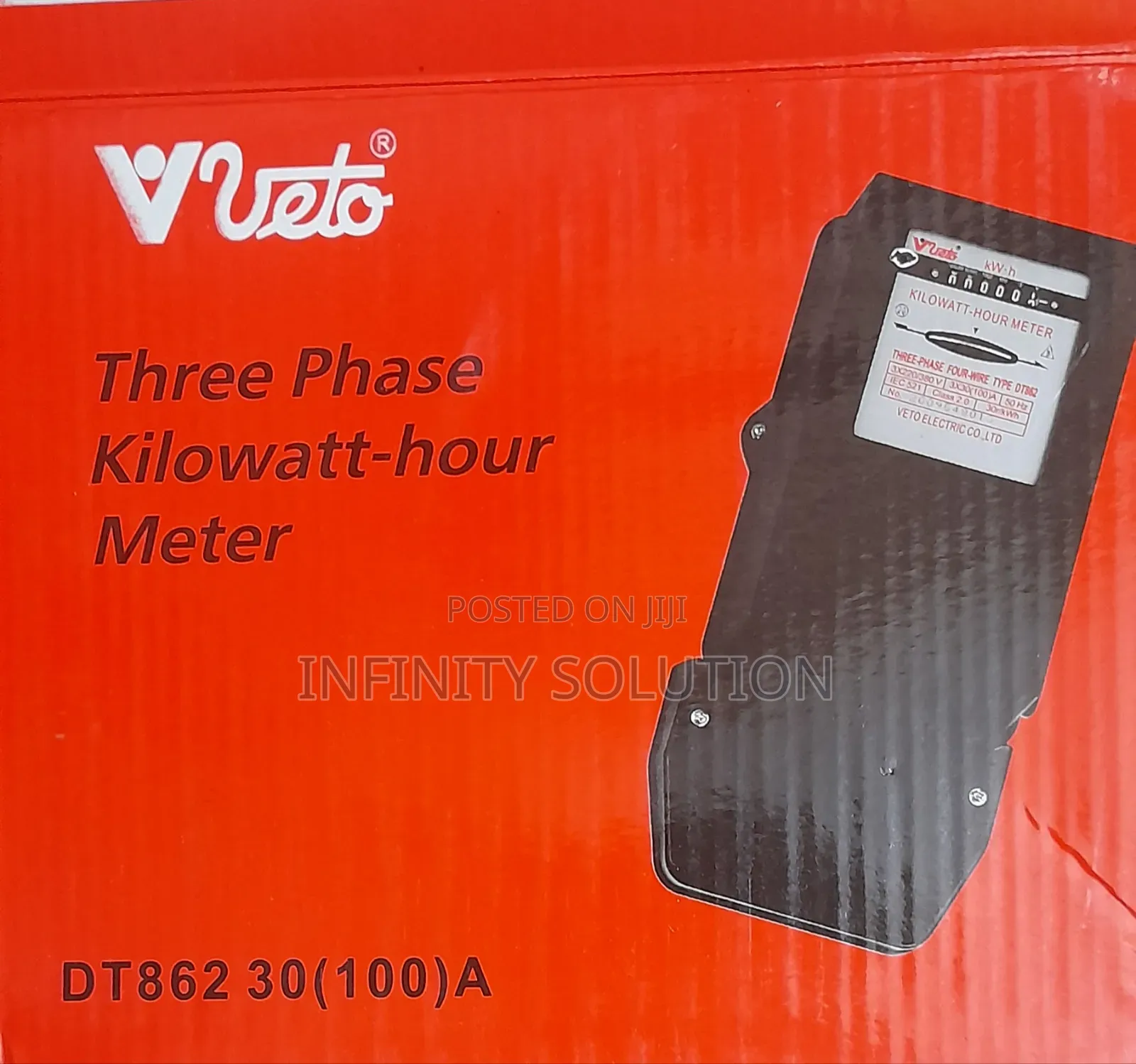

Veto brand DT862 three-phase four-wire kilowatt-hour meter, used for measuring electricity consumption. Key features include:
Type: Three-phase four-wire, model DT862.
Voltage: 3x220/380 V.
Current: 3x30(100)A.
Frequency: 50Hz.
Accuracy: Class 2.0, compliant with IEC 521 standards.
Measurement: Displays total energy consumption in kilowatt-hours (kWh) using a mechanical register.
Revolutions per kWh: 30r/kWh.
Manufacturer: VETO ELECTRIC CO. LTD.
Installation: Typically installed indoors or in an outdoor meter box.
Function: Measures active energy consumption in three-phase electrical systems.
Configuration: Can be configured in Star or Delta setups.
