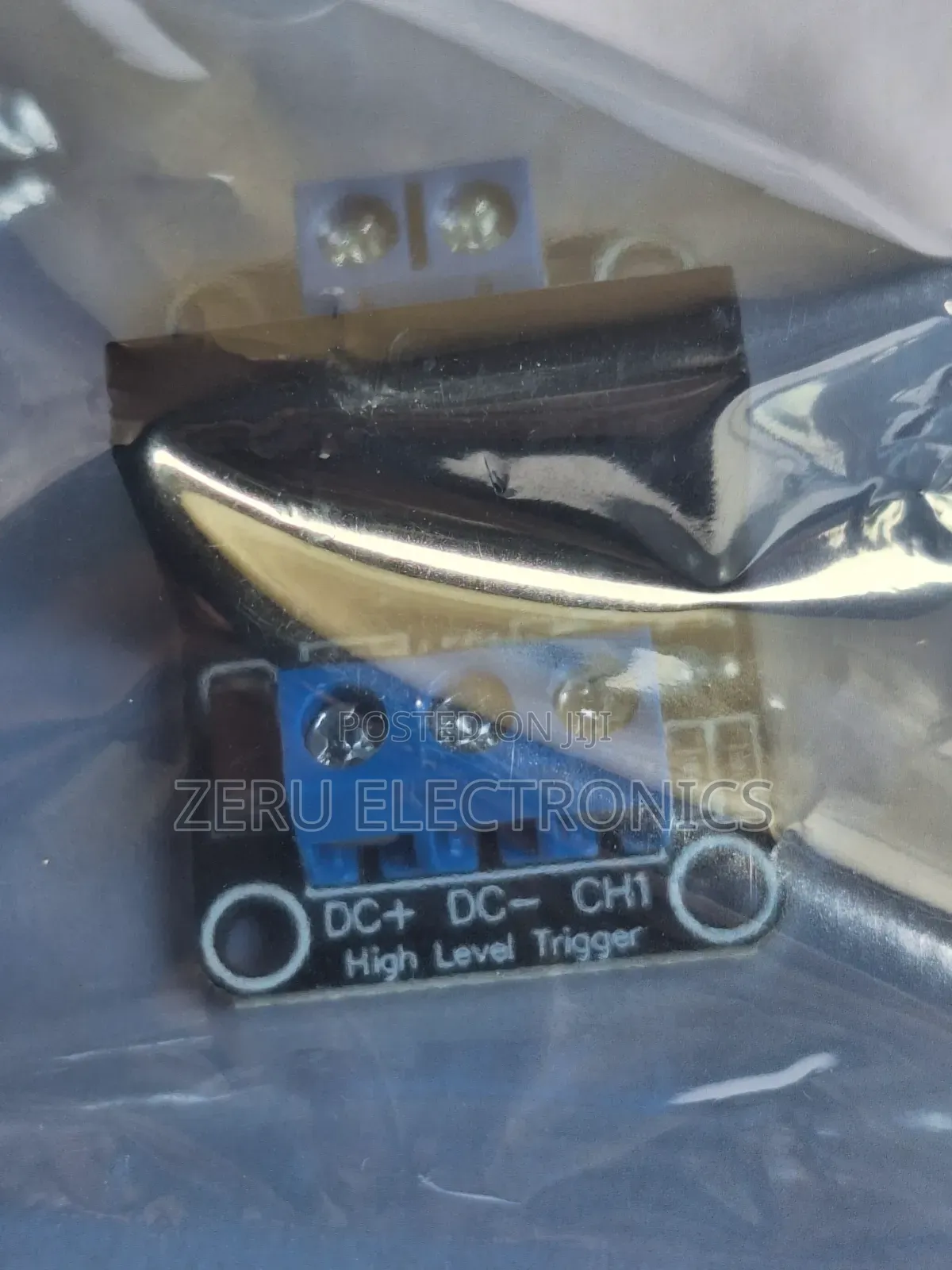

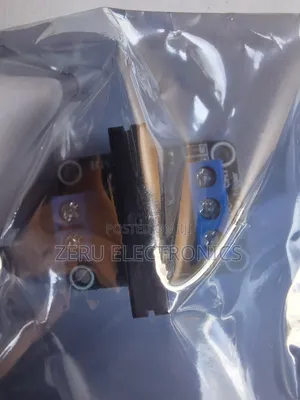

5V 1 Channel Solid State Relay
The 5V 1 Channel SSR G3MB-202P Solid State Relay Module is based on the Omron G3MB SSR relay capable of switching AC voltages up to 240V with a current rating of 2A
Load Voltage: Up to 240V AC
Load Current: Up to 2A continuous at 25°C
Control Voltage: 5V DC input
Input Current: About 7-20mA
Operate time: Half power source cycle + 1 ms max
Output ON voltage drop: Max 1.6V (RMS)
Leakage current: Approx. 1.5mA at 200VAC
Built-in resistive fuse for protection
Low-level trigger input (active low)
Size: Roughly 26mm x 34mm module
Long lifespan, silent operation with no mechanical contacts
This ssr is suitable for Arduino and other microcontroller applications to switch AC loads up to 240V 2A safely without mechanical wear
