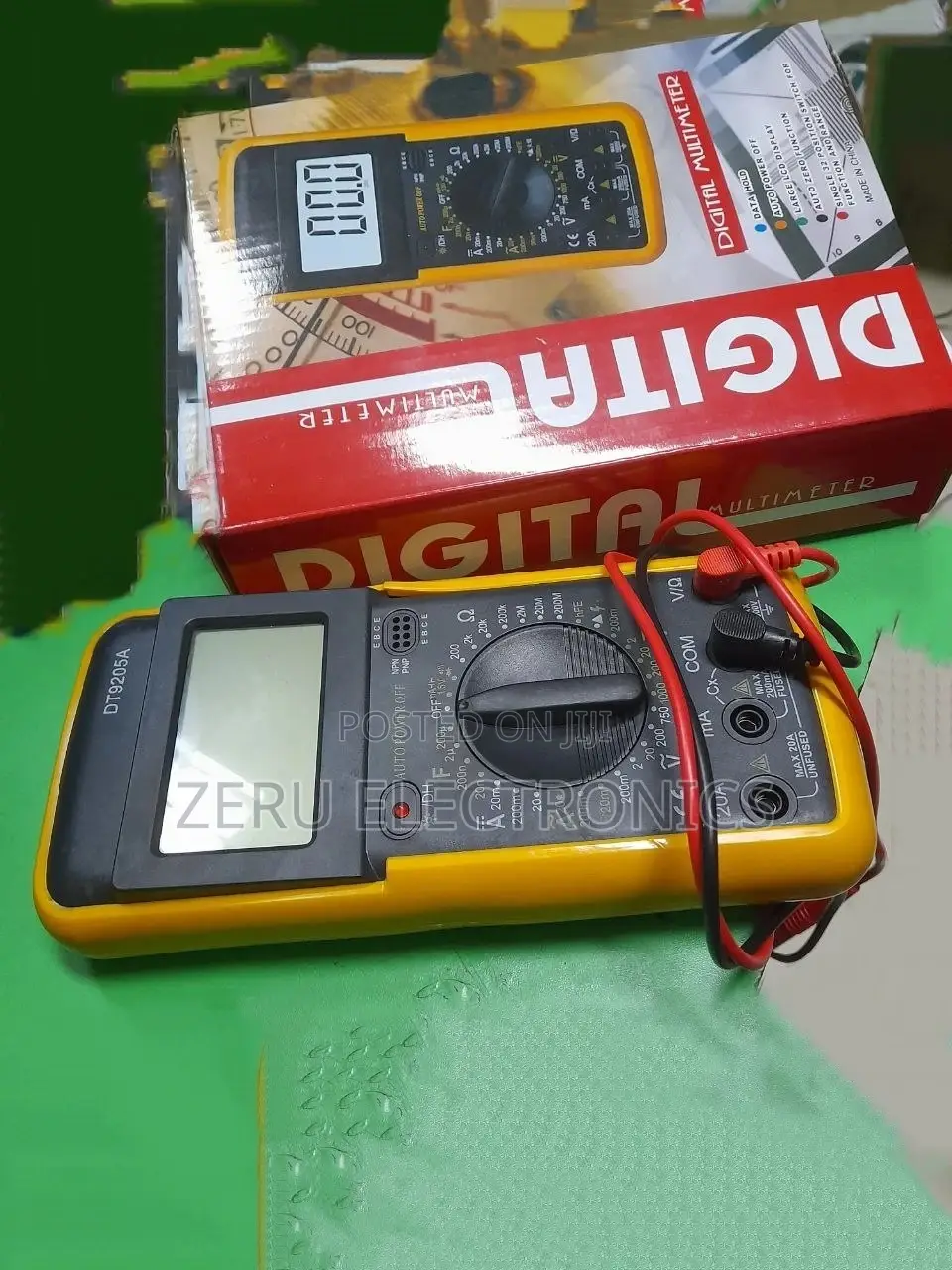

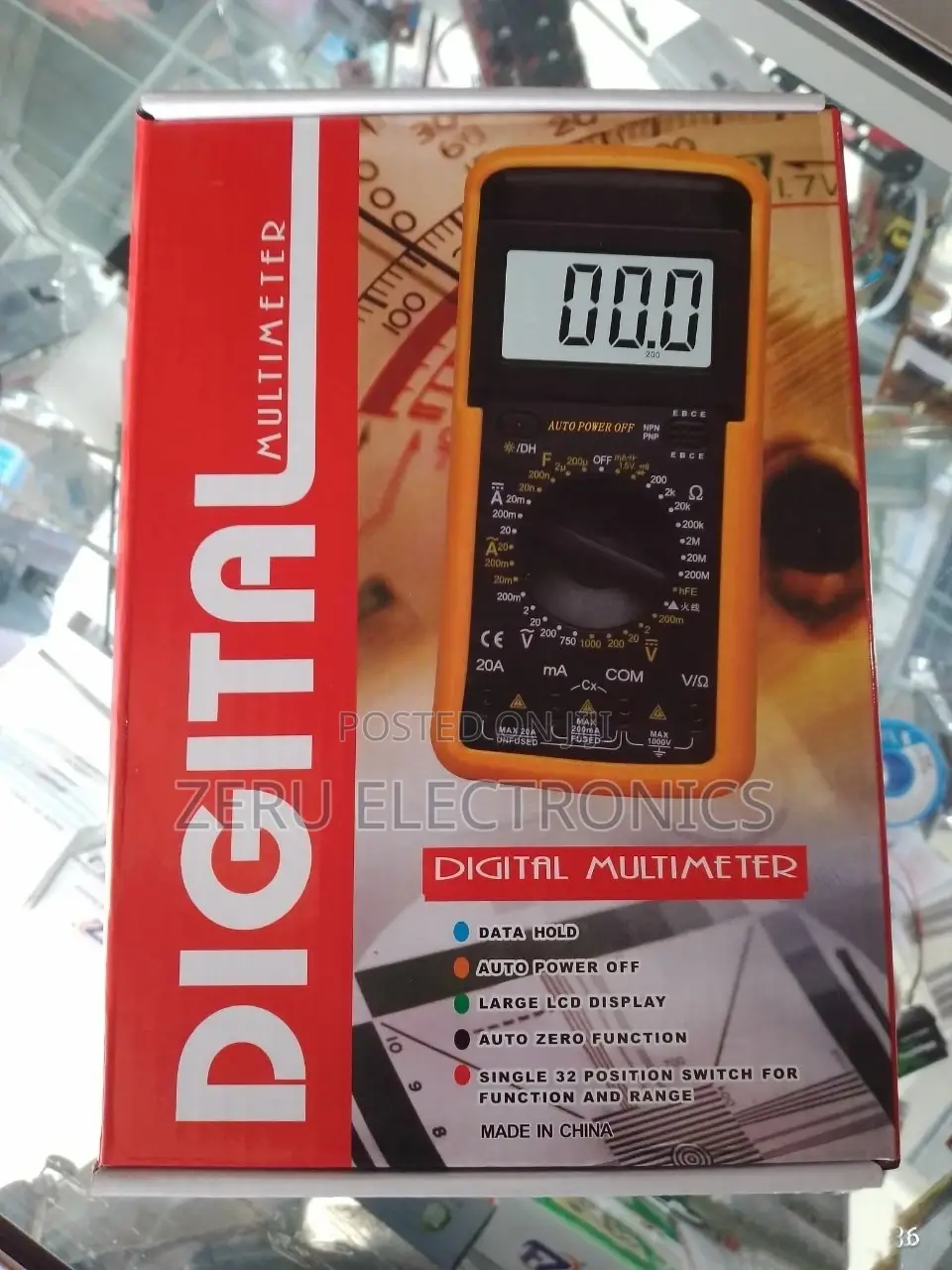

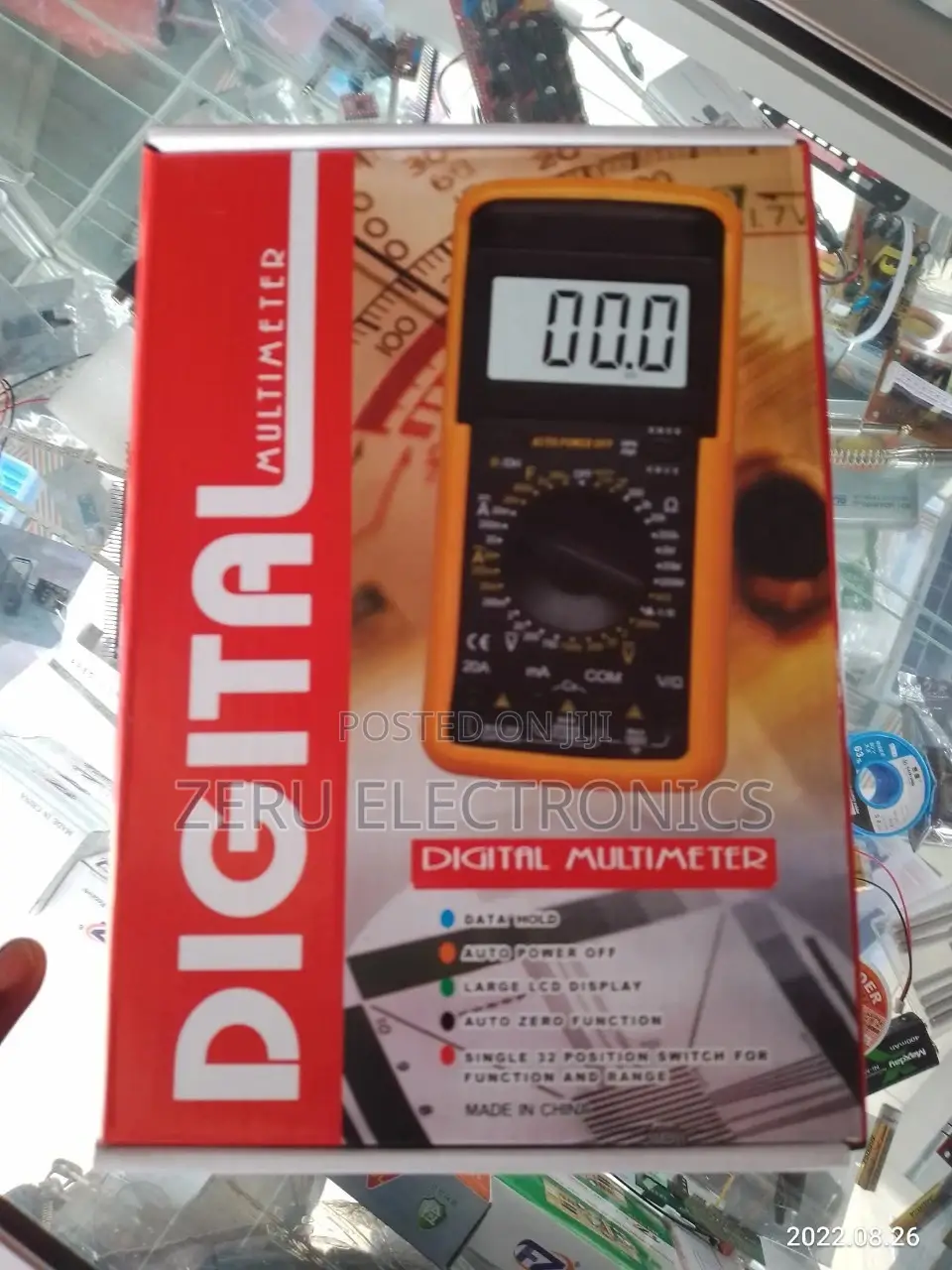

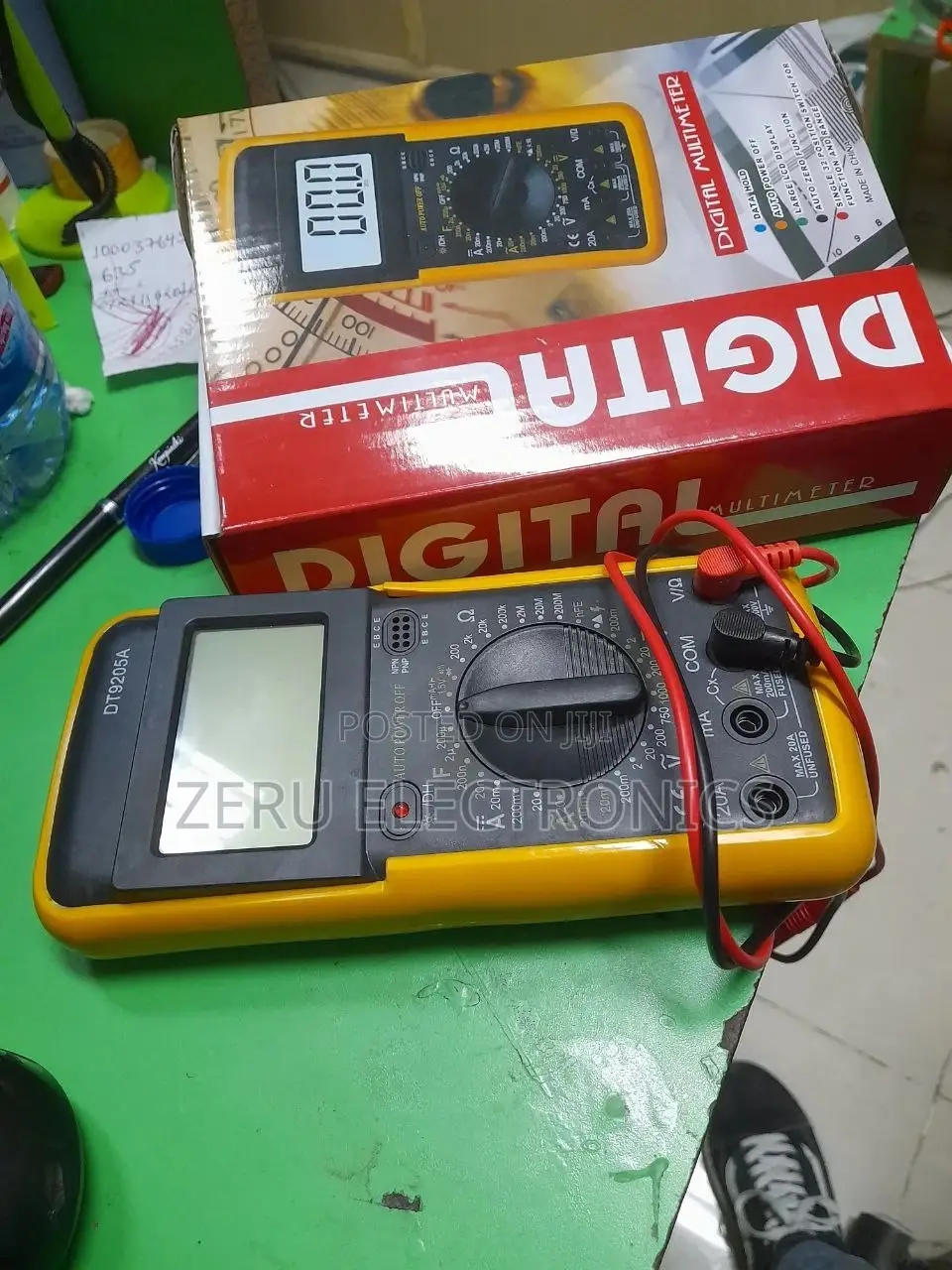

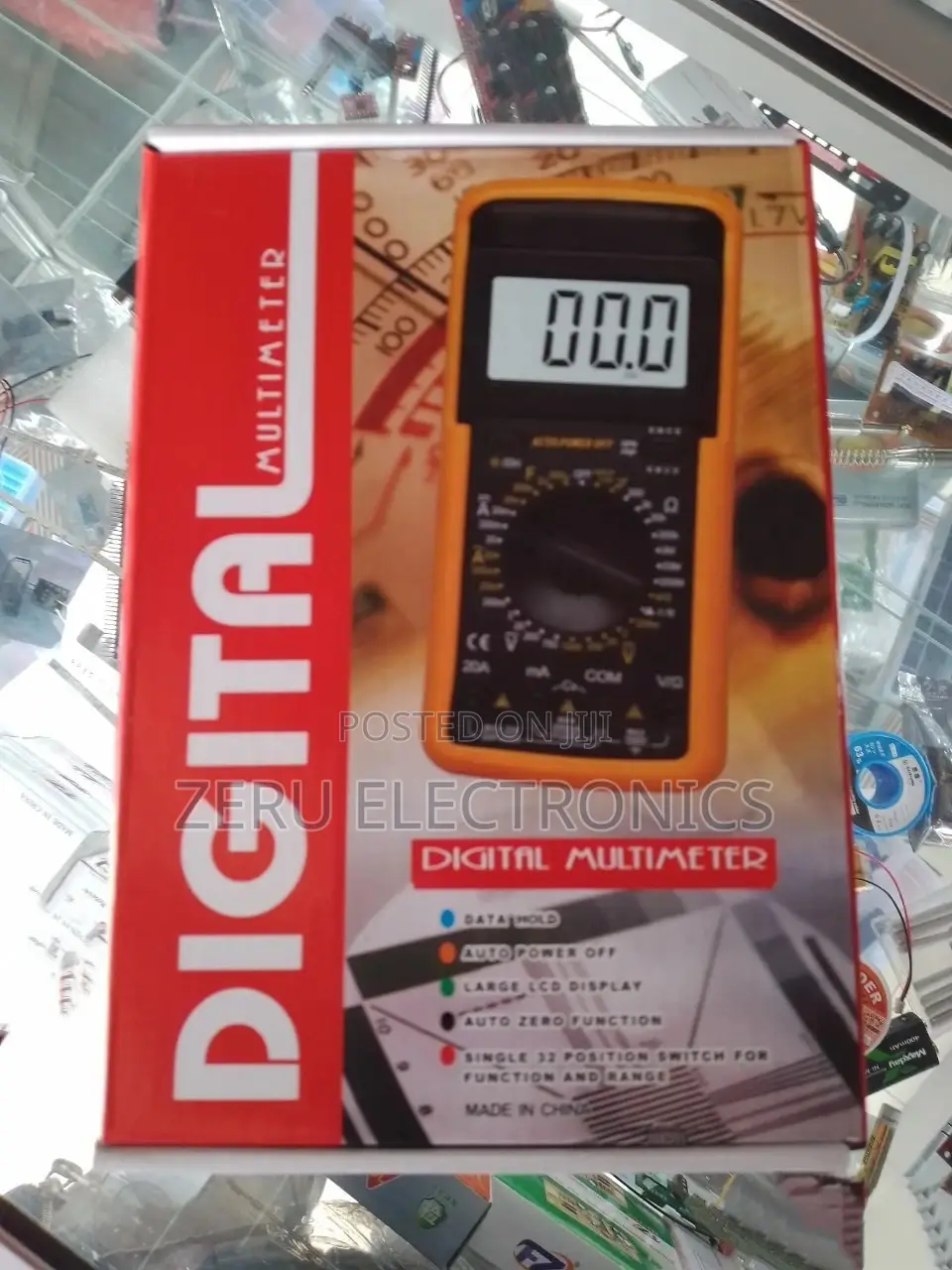

Dt9205a digital multimeter lcd ac/dc ammeter resistance capacitance tester
accurate, compact, handheld, easy to carry and operate, battery powered
overload protection on all ranges
automatic shutdown function for idle use
coms integrated circuit, the principle of double integral a/d conversion
automatic zero, auto-polarity selection; high quality test buzzer sound and led indication
maximum voltage between terminals and earth ground: 1000dc or 700vac
fuse proteciton: f 200ma/250v
power: 9v battery(battery is not included), neda 1604 0r 6f22
display: lcd
operating temperature: 0~40°c
ac voltage (v): 200mv, 2v, 20v, 200v, 700v
dc voltage (v): 200mv, 2v, 20v, 200v,1000v
ac current (a): 2ma, 20ma, 200ma, 20a
dc current (a): 2ma, 20ma, 200ma, 20a
resistance (ohm): 200, 2k, 20k, 200k, 2m, 20m, 200m, 2000m
