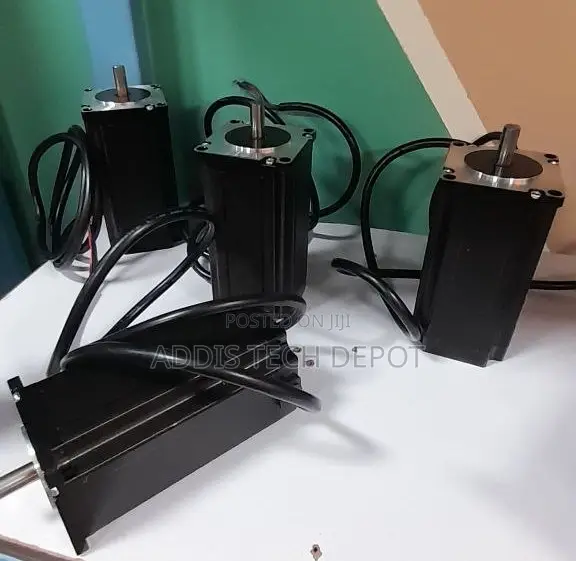

Nema 34 12.5n.M Closed Loop Stepper Motor
CNC Router Machines
Type
Brand New
Condition
0.6kW
Routing Machine Power
2000
Spindle RPM
NEMA 34 12.5N.M CLOSED LOOP
Working voltage: AC 20-70V OR DC 30-100V
- Height: 118mm
- Shaft length: 32mm
- Shaft diameter: 14mm
- Current: 6A
- Torque: 12.5N.m
- Communication mode: RS322 serial port and Debug panel Phase connection.
- Low heating / high efficiency
- Smooth and accurate (space vector current control algorithm based on feedback encoder and vector smoothing filtering technology) has a good resistance to the low frequency resonance of traditional stepper motor;
- High speed response (advanced servo control technology provides powerful torque output, so that the system has very high dynamic response, stepping servo speed up to 600-2000RPM);
