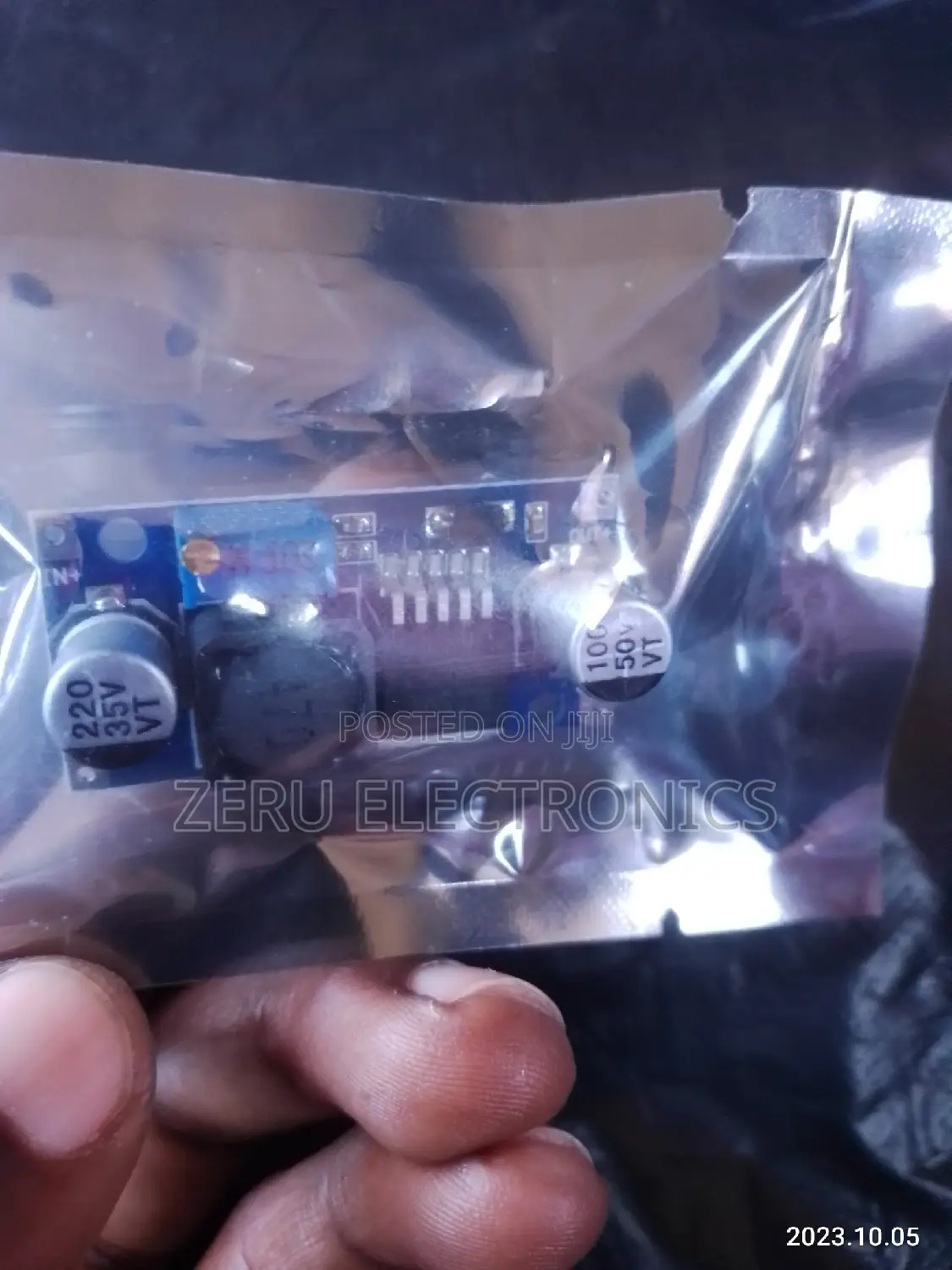

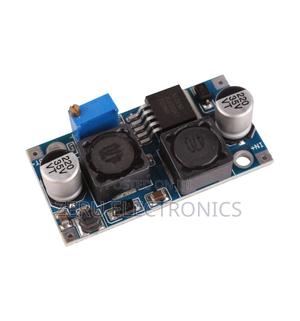

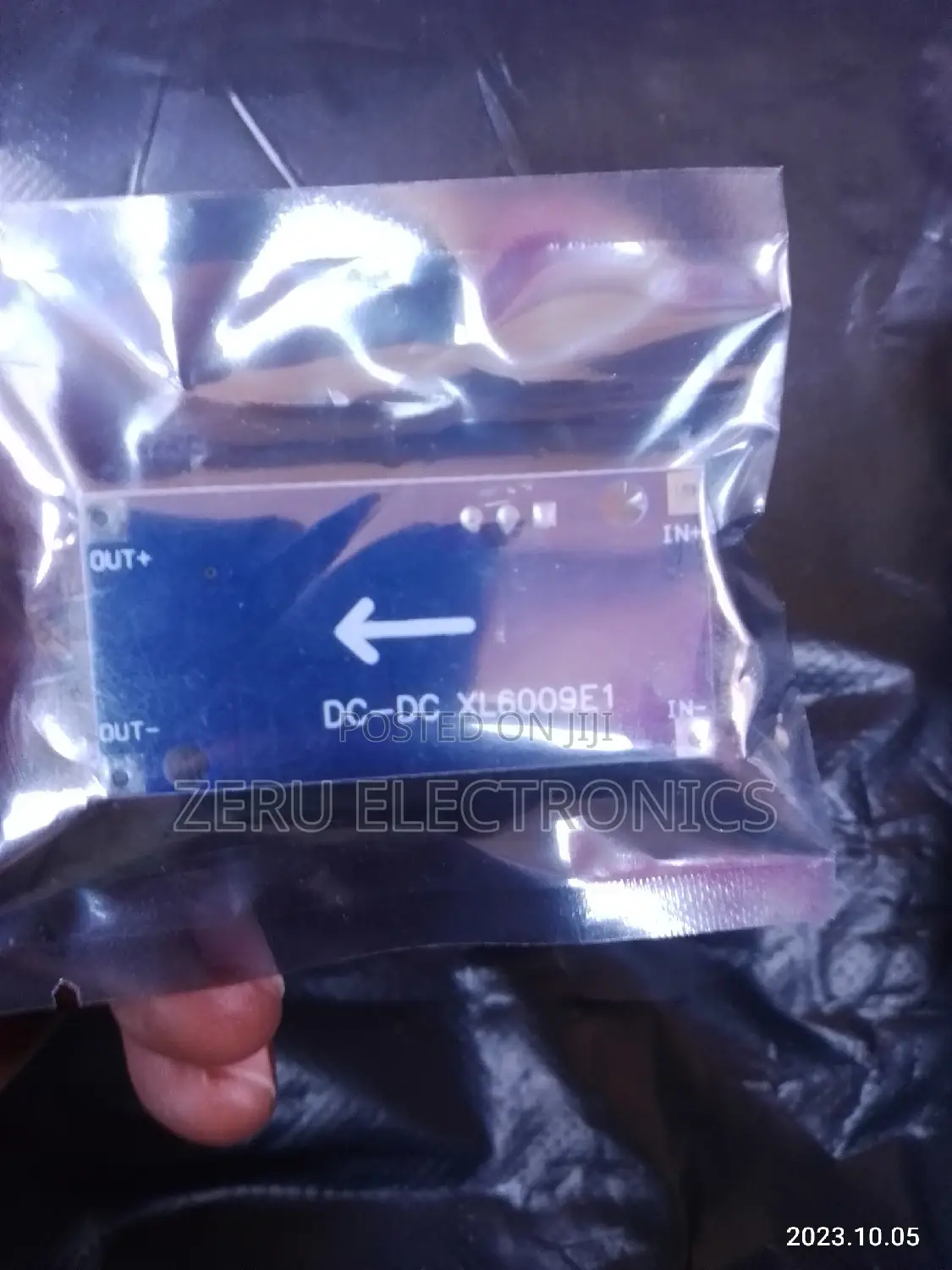

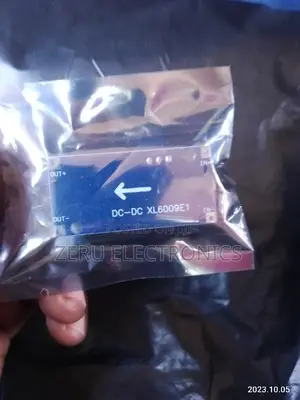

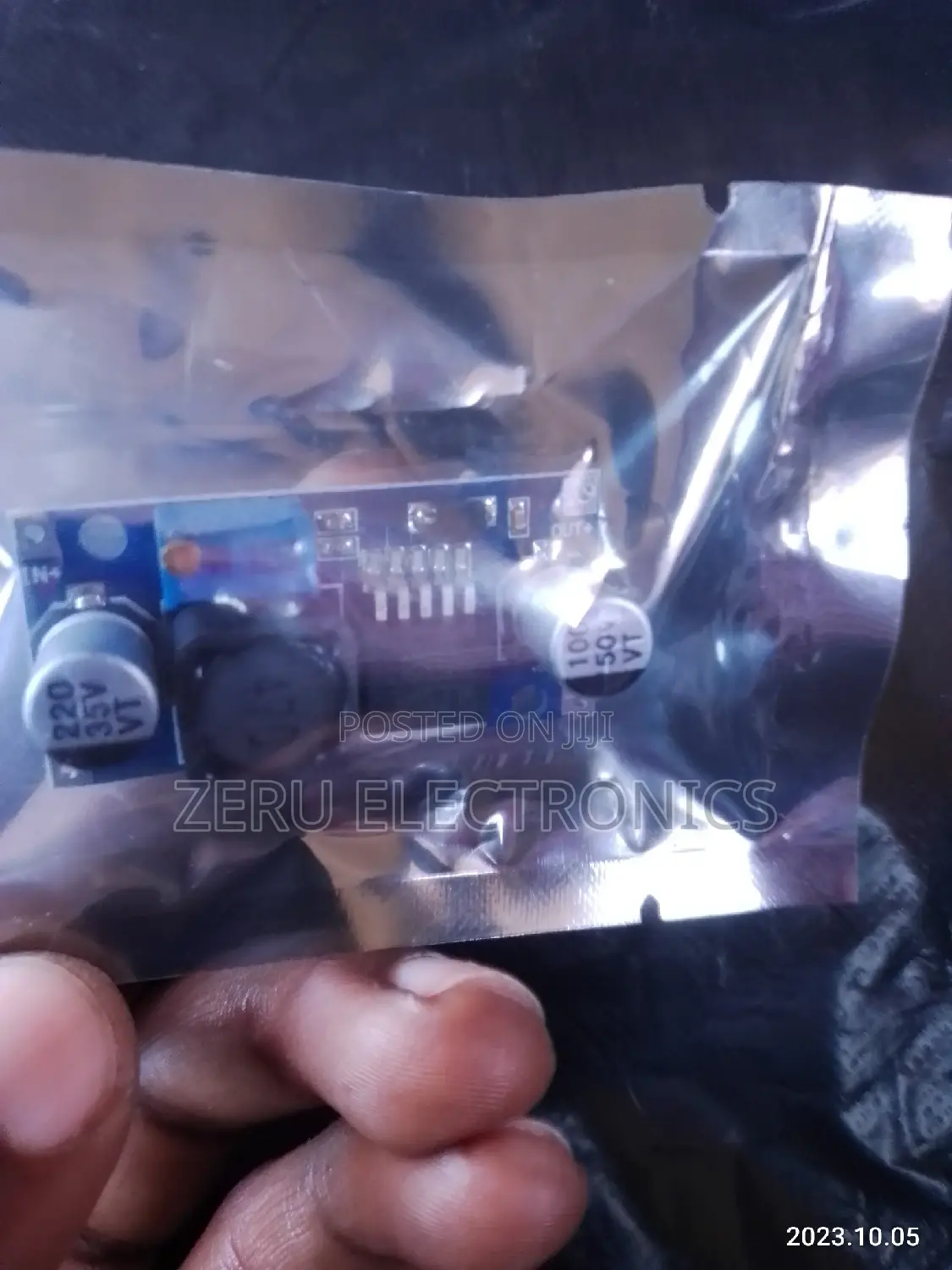

XL6009 DC TO DC CONVERTER
Module Properties: Non- isolated boost (BOOST)
Rectification: Non- Synchronous Rectification
Input Range: 3.8V – 32V
Output Range: 1.25V – 35V
Input Current: 3A (max) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage, the greater the load current.)
Output current: Maximum output current 4A
Conversion efficiency: <94% ( the greater the pressure , the lower the efficiency )
Switching frequency: 400KHz
Output Ripple: 50mV ( the higher the voltage, the greater the current, the greater the ripple )
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Operating Temperature: -40°C to +85°C
Dimensions: 48 x 25 x 14mm ( L x W x H )
