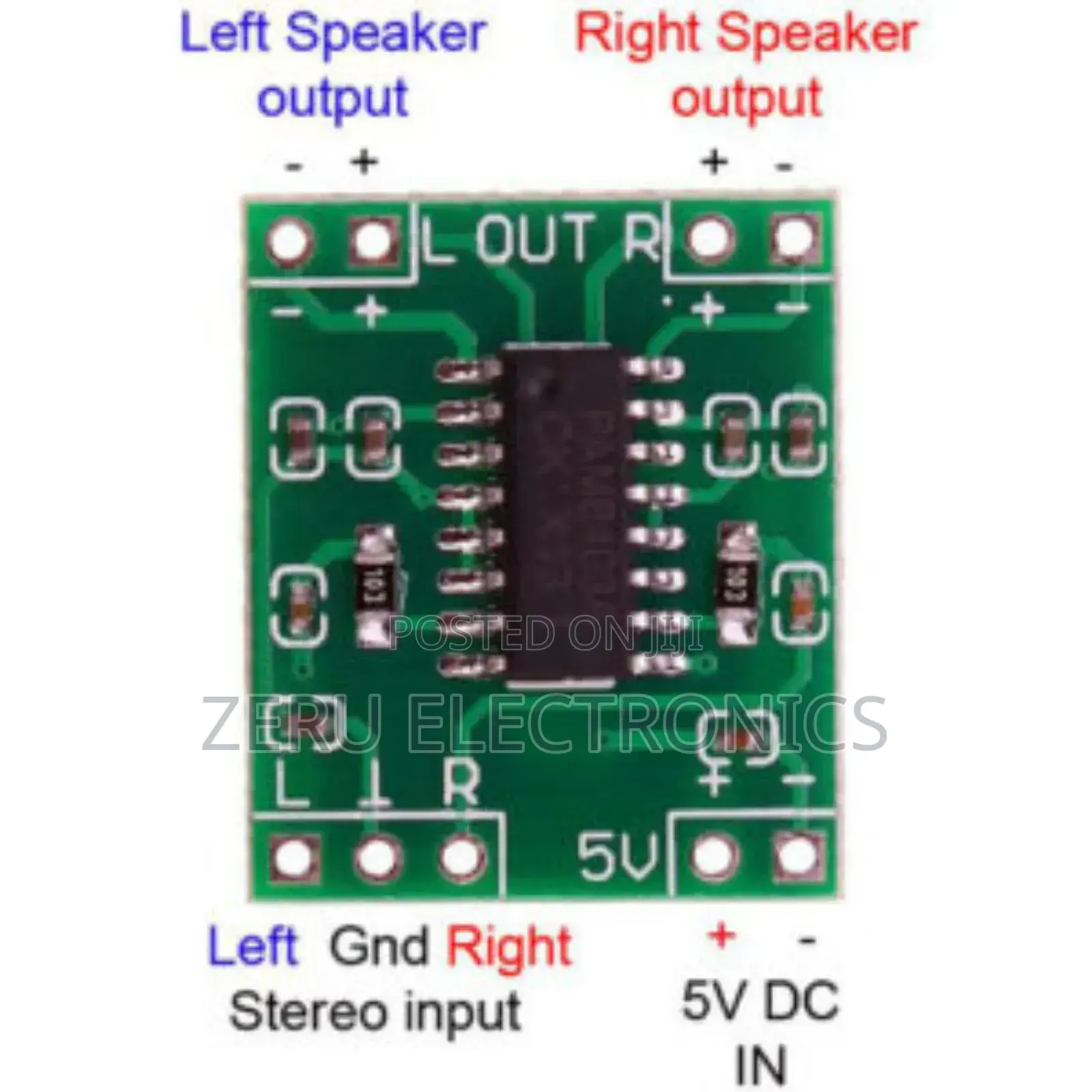

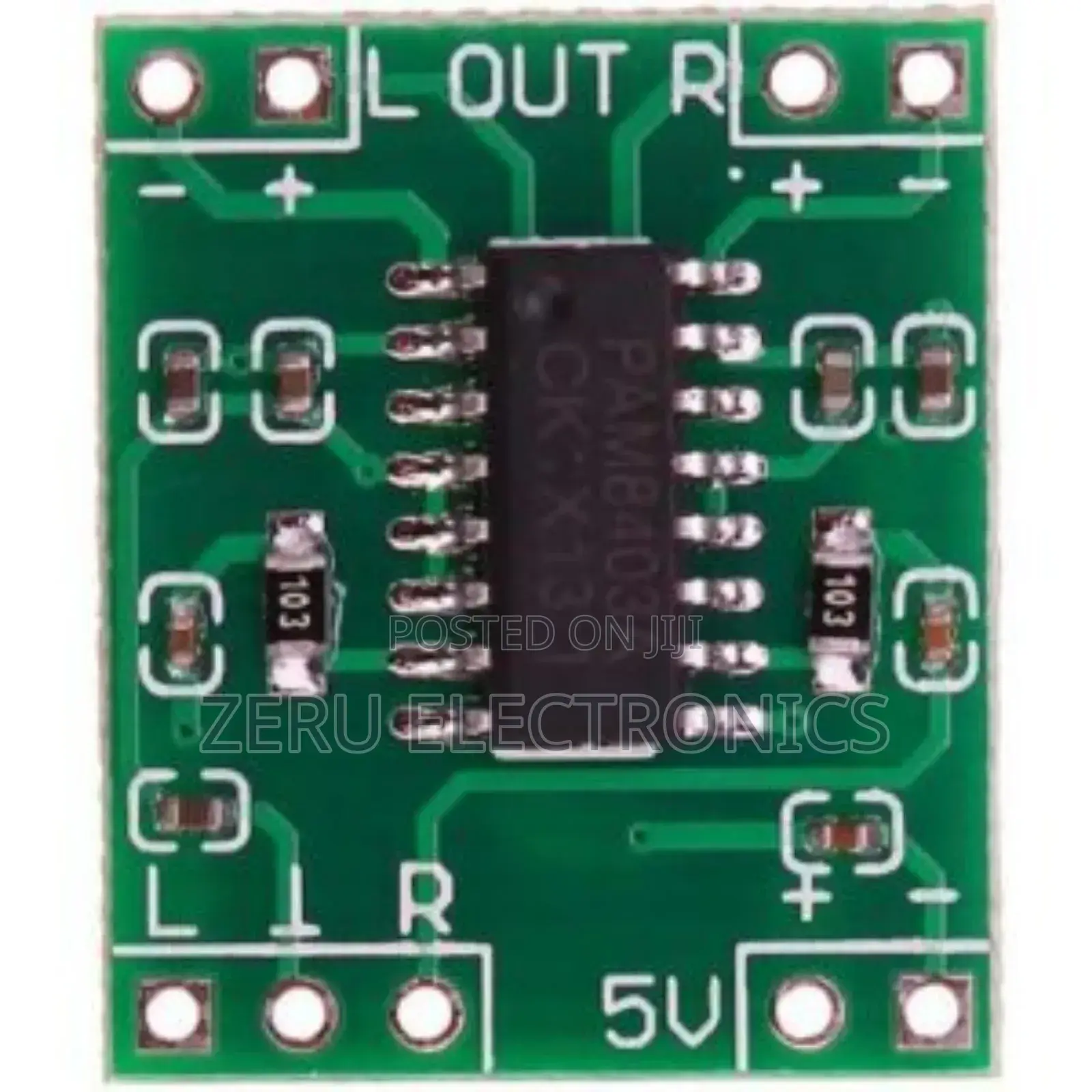

PAM8403 Stereo Audio Amplifier Module
PAM8403 is an Amplifier Board which can be powered using simple 5V input and could drive two 3W 3W stereo speakers. It is an excellent choice for those who want a Class-D stereo audio amplifier in small board space
Operating Voltage: Wide power supply ranges from 2.5V to 5.5V DC
Dual-channel stereo with high output power (3W 3W Output at 10% THD with a 4Ω Load DC)
Max Gain 24 dB.
Filterless architecture
Low Quiescent Current and Low EMI
Operating Temperature: -40 to 85°C
Short Circuit Protection
Thermal Shutdown
Superior Low Noise
Efficiency up to 90%
Dimensions (LxWxH) in cm 2.1 x 1.8 x .3
