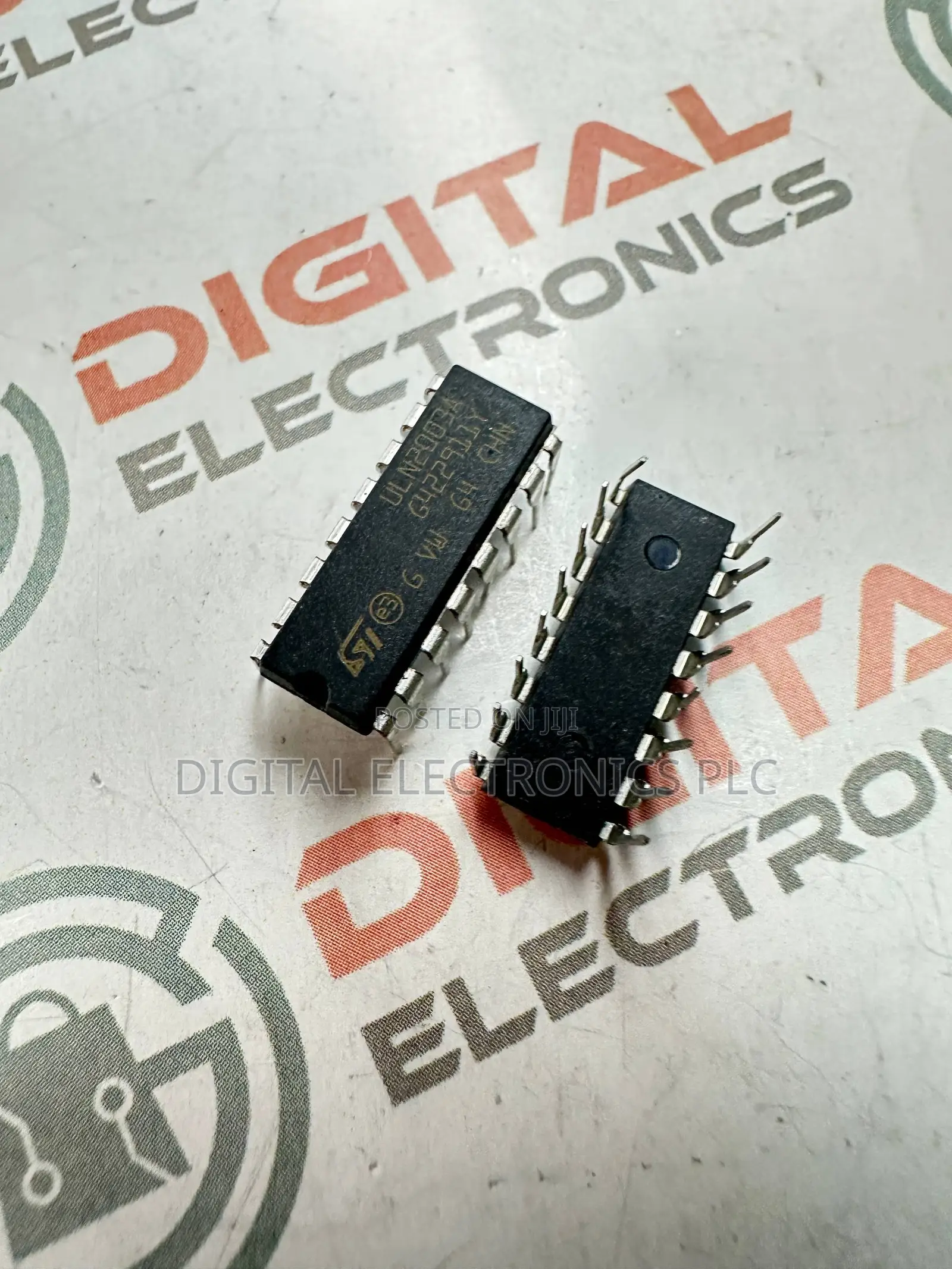

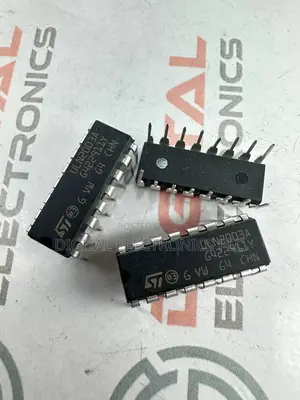

Uln2003a Motor Driver Ic
Other
Brand
Other
Type
Brand New
Condition
ULN2003 IC is one of the most commonly used Motor driver IC generally used when we need to drive high current loads using digital logic circuits like Op-amps, Timers, Gates, Arduino, PIC, ARM etc.
ULN2003 is a 16 Pin IC, consisting of 7 Darlington pairs (each pair protected with suppression diode) and thus has the capability to handle a maximum of 7 loads(could be inductive).
Contains 7 high-voltage and high current Darlington pairs
Each pair is rated for 50V and 500mA
Input pins can be triggered by 5V
Outputs can be paralleled for higher current
TTL/CMOS/PMOS/DTL compatible inputs
All seven Output pins can be connected to gather to drive loads up to (7×500mA) ~3.5A.
Can be directly controlled by logic devices like Digital Gates, Arduino, PIC etc
ETB 550
