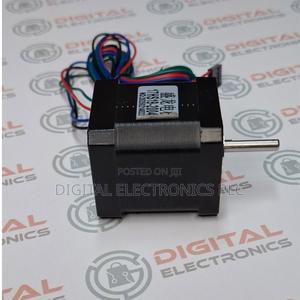

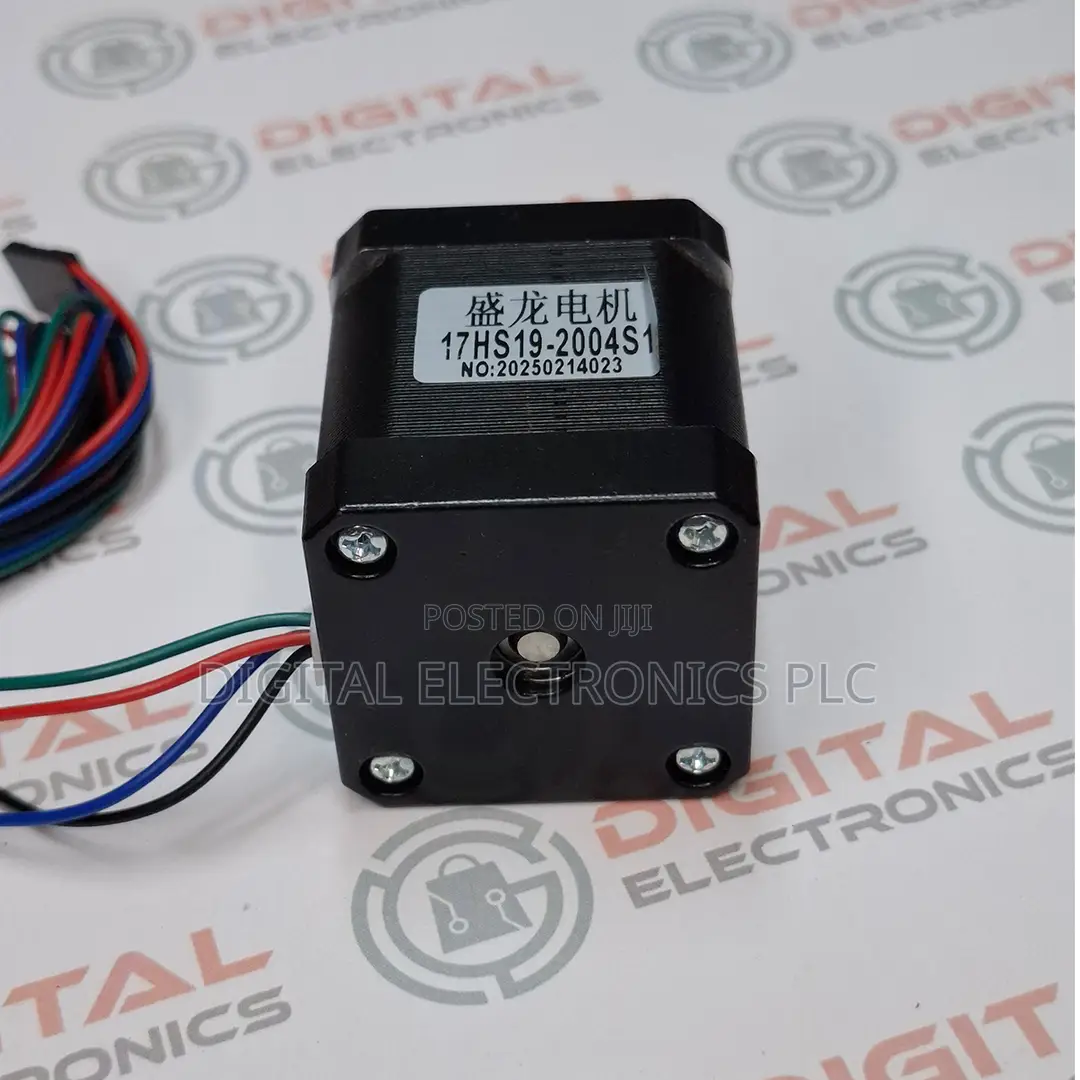

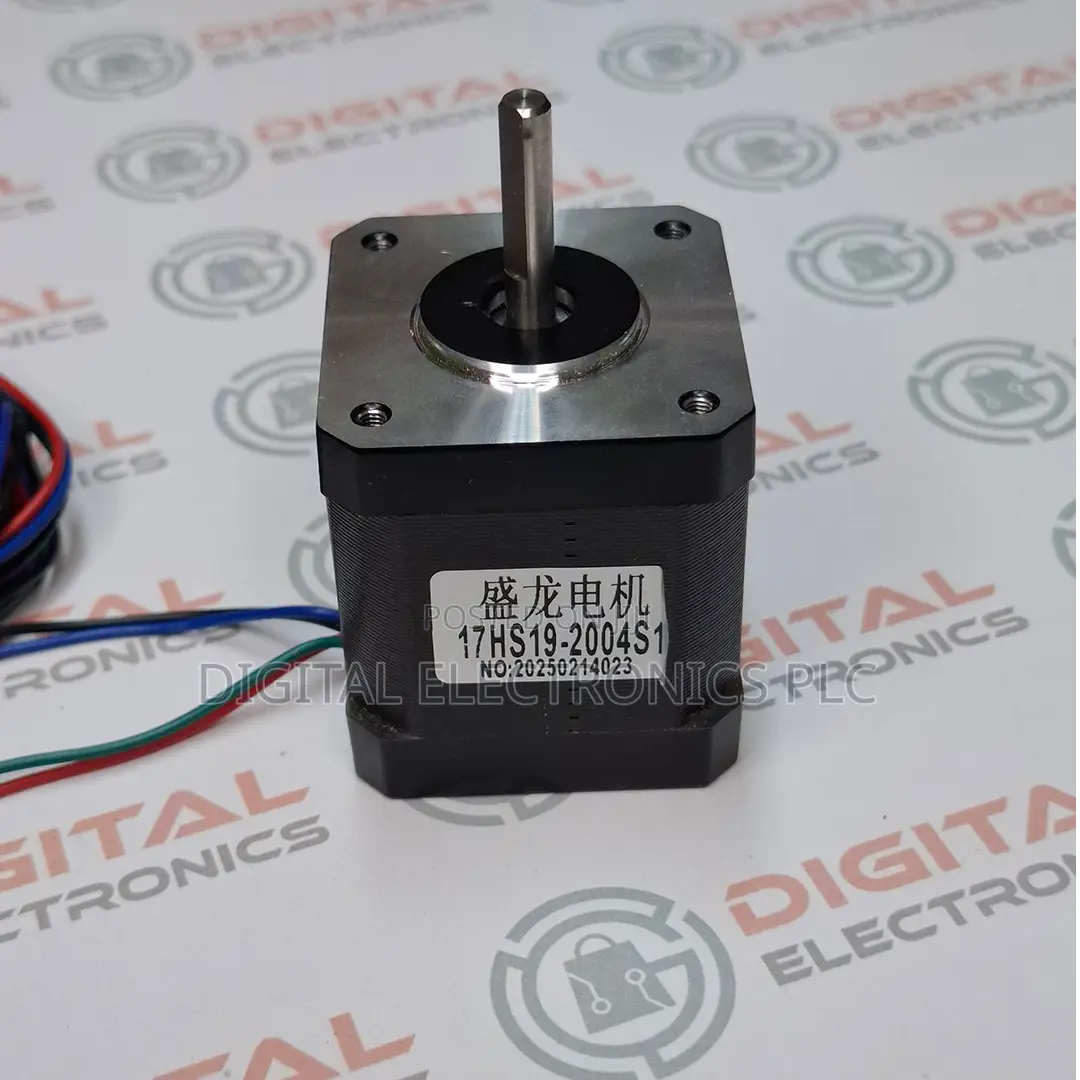

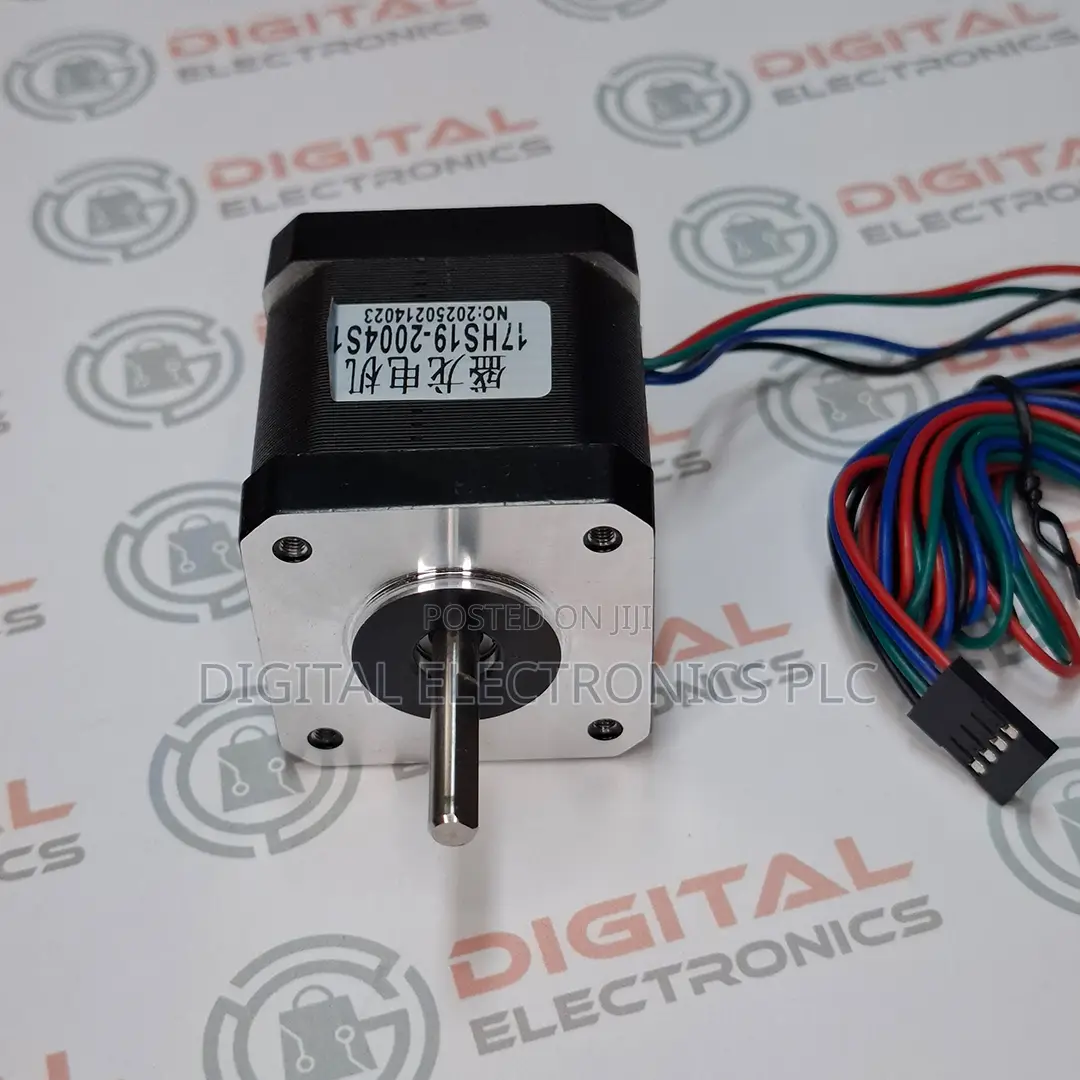

Nema 17 Stepper Motor
Other
Brand
Other
Type
Brand New
Condition
Motor Type: Bipolar Stepper
Step Angle: 1.8°
Holding Torque: 59 Ncm (84 oz-in)
Rated Current/phase: 2.0 A
Phase Resistance: 1.4 ohms
Inductance: 3.0 mH ± 20% (1KHz)
Number of Leads: 4
Frame Size: NEMA 17 (42x42mm)
Body Length: Approx. 48mm
Shaft Diameter: 5mm
Shaft Length: 24mm
Shaft Type: D-cut
Lead Length: 1000mm (1m)
Connector: 4-pin 0.1" pitch (2.54mm) Harwin female connector
Weight: Approximately 390g
Rotor Inertia: 82 g-cm2
ETB 4,500
