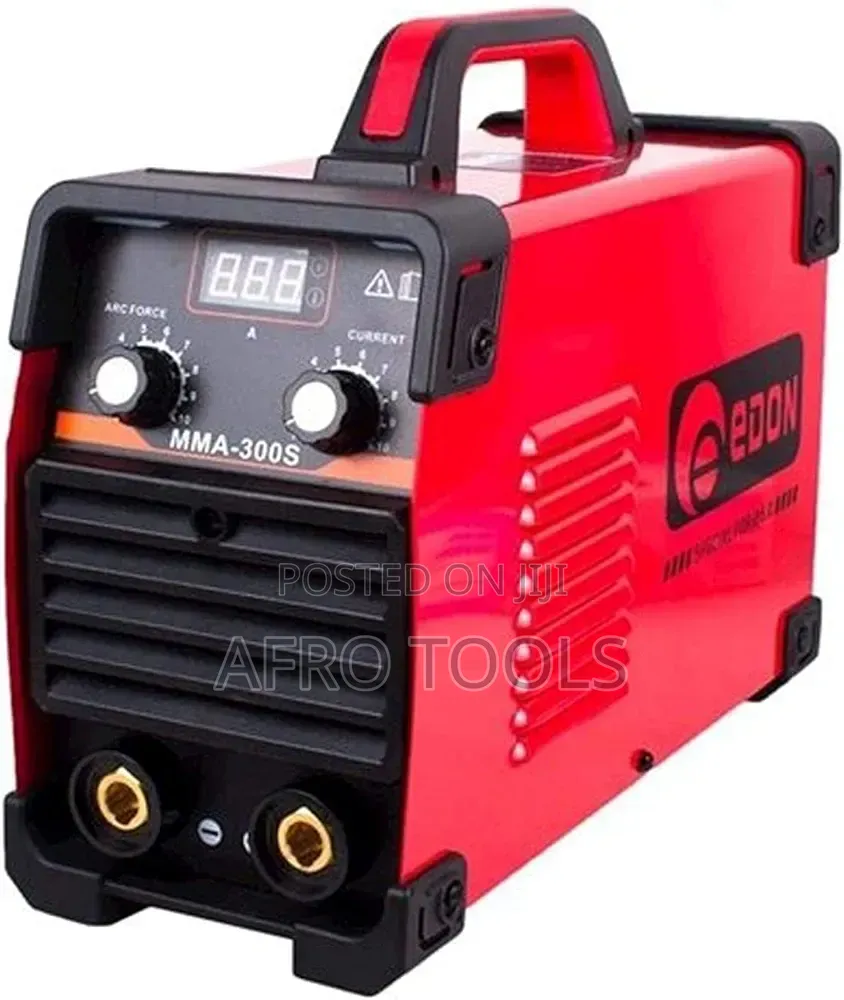

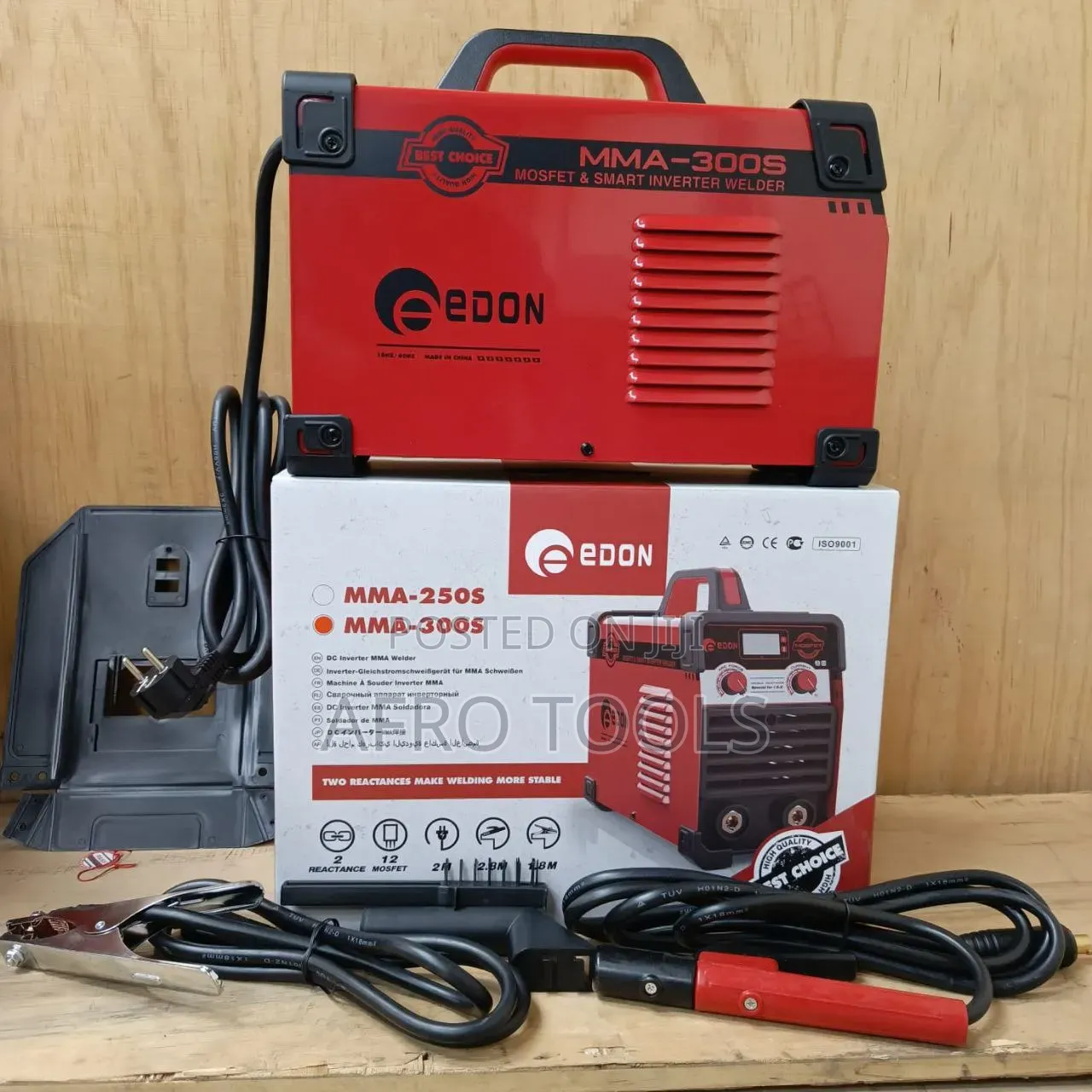

Edom 300am Portable Welding Machine
Edon
Brand
Welding Machines
Type
Hybrid Inverter
Inverter Type
300amps
Machine Amperage
Brand New
Condition
Edon 300am portable welding machine
key specifications (most common single-phase model)
featuretypical specificationnote
welding processmma (stick welding)uses coated stick electrodes (e6013, e7018, etc.).
technologyinverter (often igbt or sometimes mosfet)provides efficiency and stable dc output.
input voltagesingle phase,220v(±10%)/50-60 hzdesigned for standard wall power.
max output current (rated)180a to 200a. this is the realistic continuous output for a 220v unit. (some listings claim 300a max, which is a theoretical peak).
current range20 a−180 a (or 20 a−200 a)wide range for welding thin to medium materials.
rated duty cycle60% @ rated current (e.g., 180a)can weld for 6 minutes.
.input power capacity∼7.8 kva to 9 kvamaximum power consumption.
usable electrode size1.6 mm to 4.0 mm (some listings claim up to 5.0 mm).
