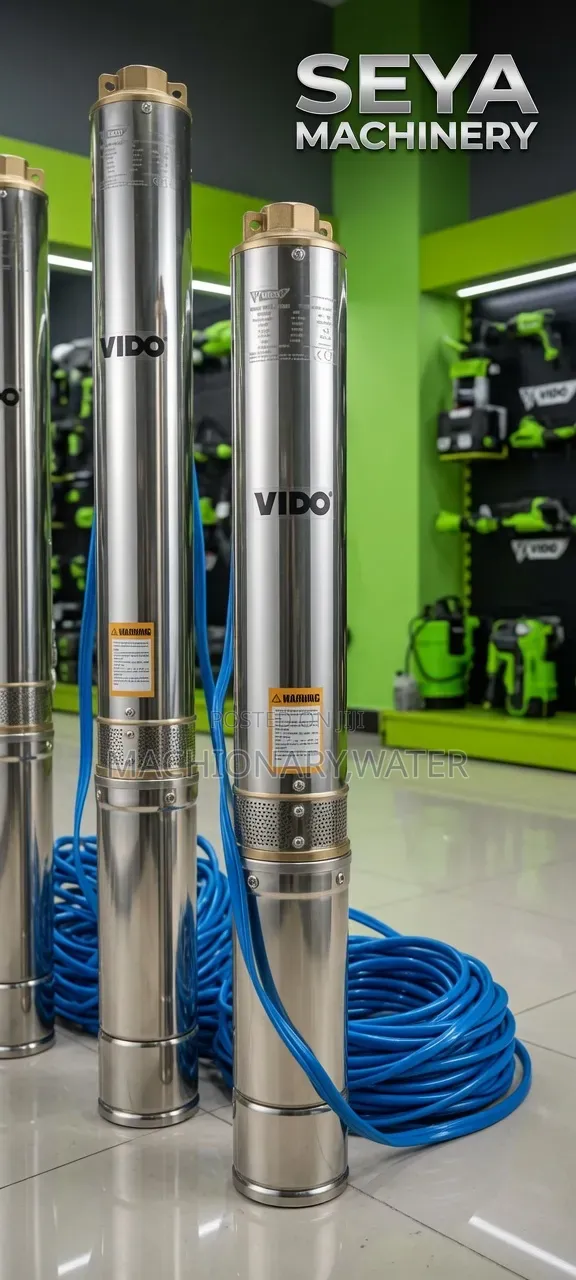

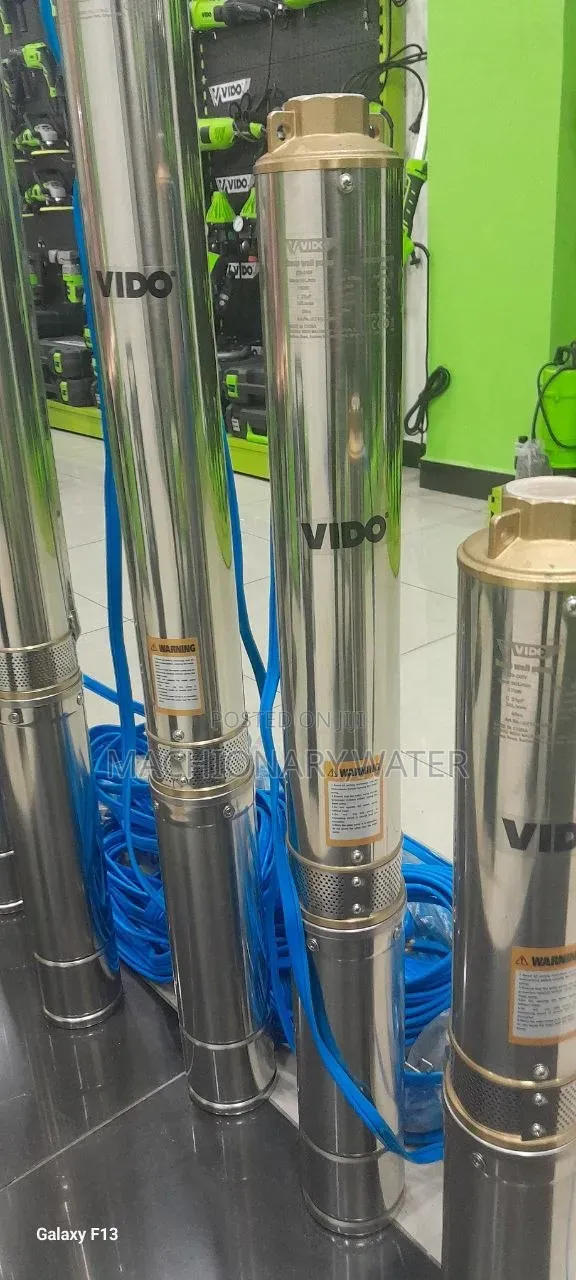

Vido deep well pump – 2hp specification
brand: vido
pump type: deep well submersible pump
power: 2hp (1500w)
voltage: 220–240v, 50hz (single phase)
well diameter: 4" (ø100 mm)
rated flow: 3 m3/h (≈ 50 l/min)
maximum flow: 5 m3/h (≈ 83 l/min)
rated head: 119 m
maximum head: 167 m
motor: 100% copper wire motor
pump body: stainless steel
impeller: brass multi-stage (24 stages)
cable length: 20 m
protection: thermal overload protection
application: boreholes, deep wells, domestic water supply, irrigation & agriculture.
