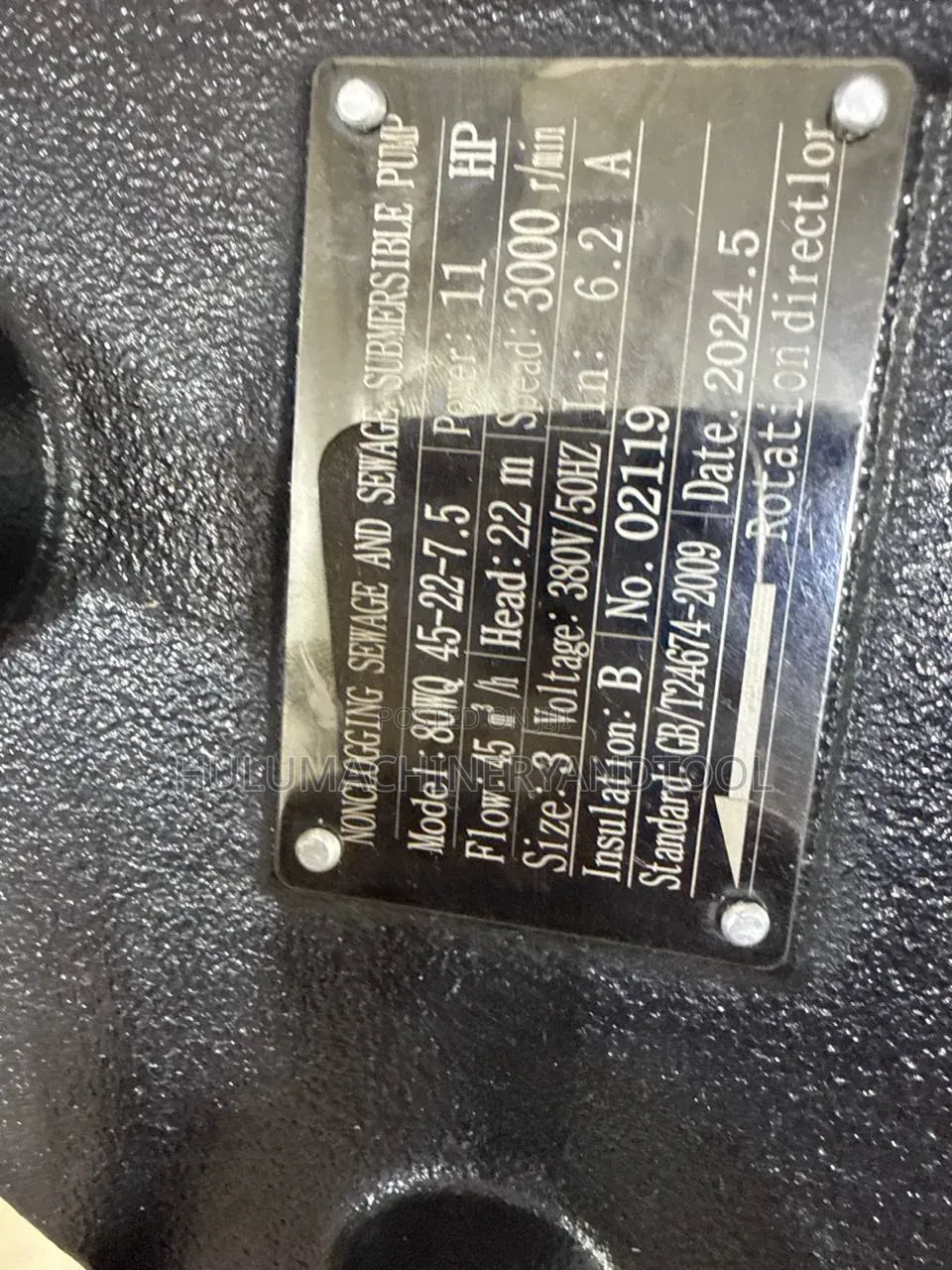

• Model: 80WQ 45-22-7.5
• Power: 11 HP (approx. 7.5 kW)
• Flow Rate: 45 m3/h (capacity of fluid it can move)
• Head: 22 m (maximum vertical height it can lift the fluid)
• Voltage: 380V (three-phase power supply)
• Frequency: 50Hz
• Speed: 3000 r/min
• Current (In): 6.2 A
• Insulation Class: B
• Manufacturing Date: 2024.5
• Standard: GB/T
General Characteristics:

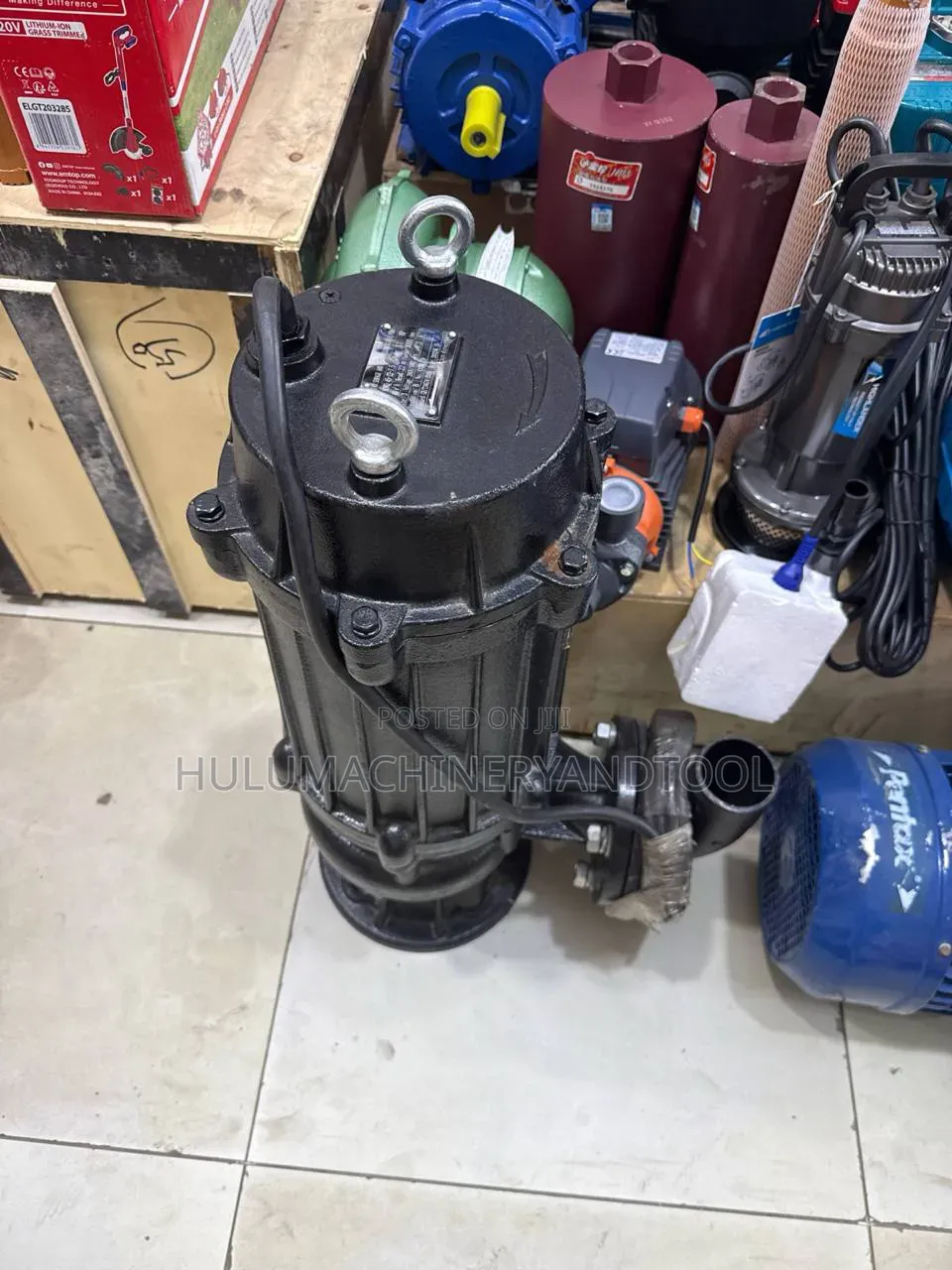

• Submersible Design: The motor and pump are integrated into a single unit, designed to be fully submerged in the liquid it is pumping.
• Non-clogging: The "WQ" designation and "non-clogging" description indicate that the impeller design is intended to pass solids and fibrous materials commonly found in sewage without blocking the pump mechanism.
