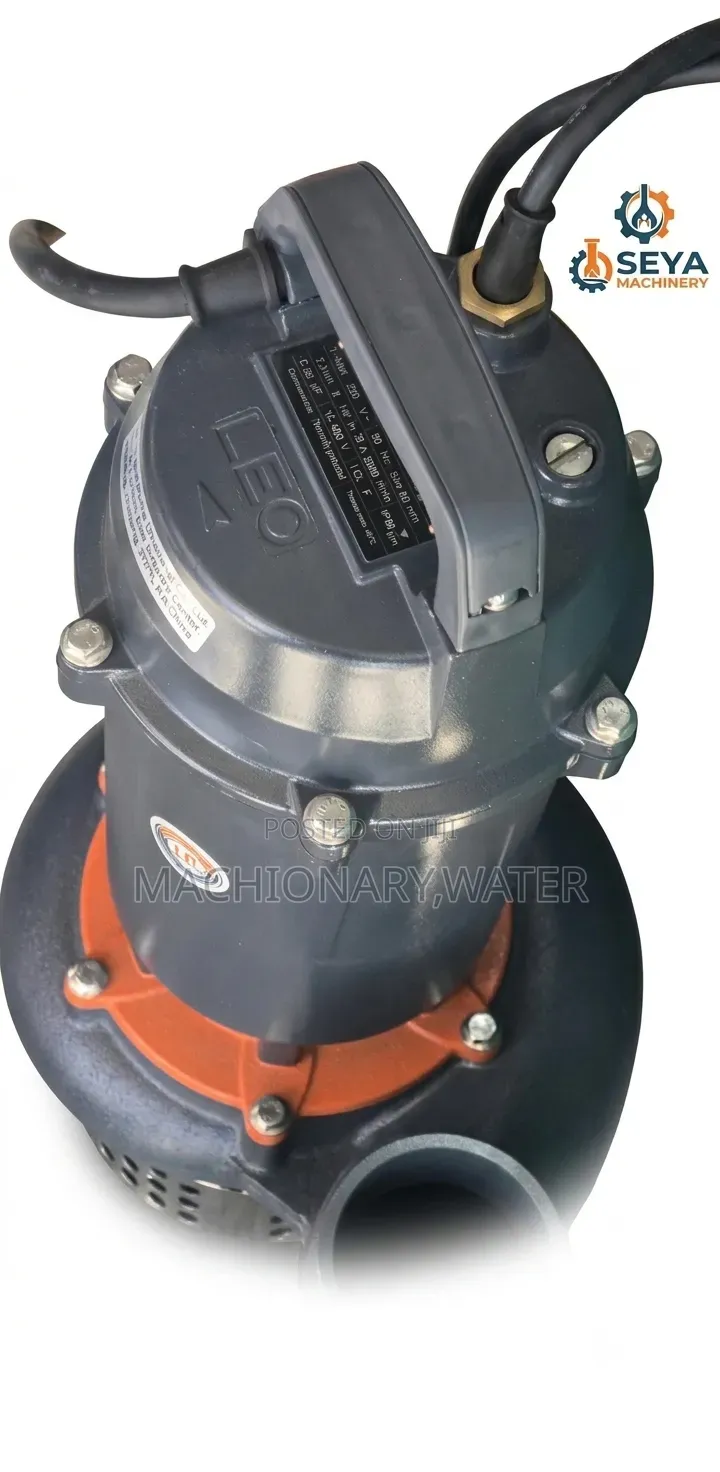

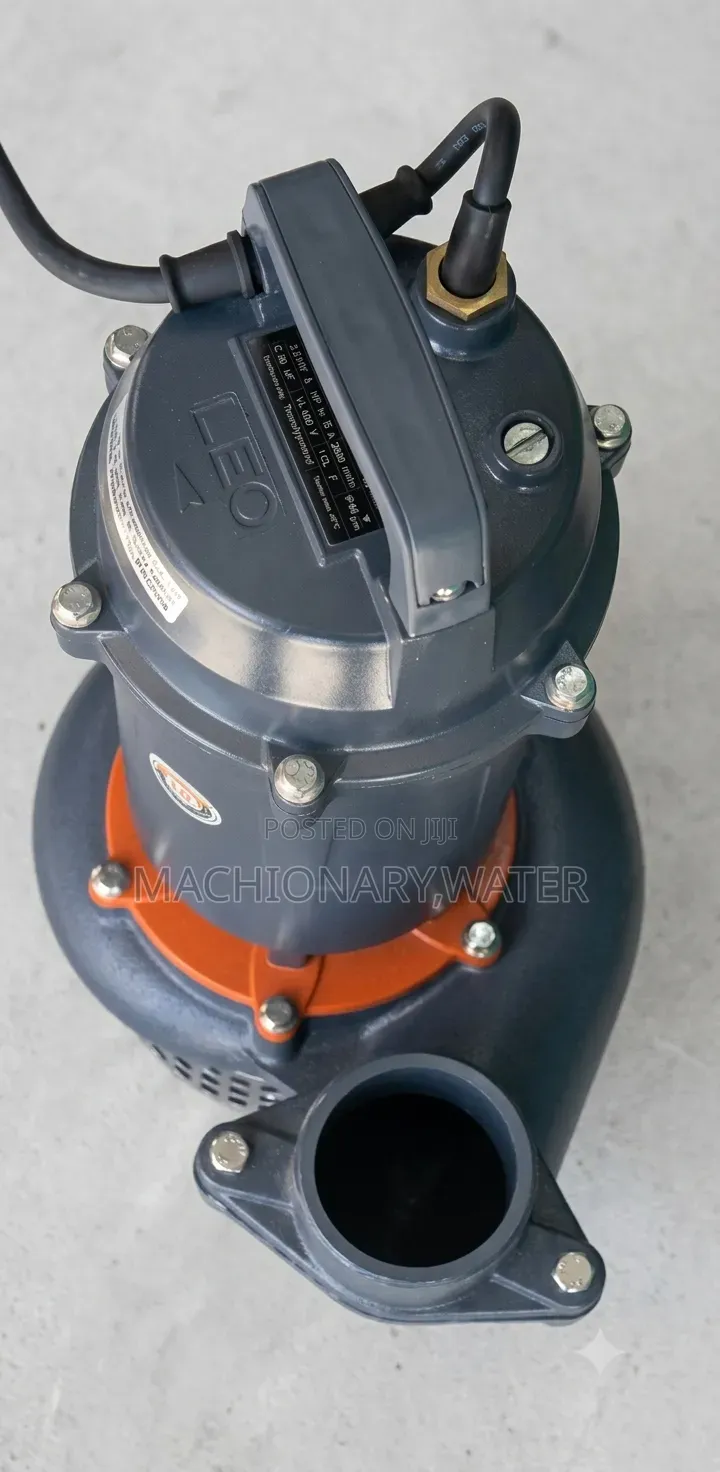

LEO 3HP Centrifugal Water Pump
Brand: LEO
Power: 3 HP (2.2 kW)
Voltage: 220V, Single Phase
Frequency: 50 Hz
Speed: 2850 RPM
Current: 15 A
Capacitor: 50 μF / 450V
Inlet / Outlet: 3" × 3" (80 mm × 80 mm)
Insulation Class: F
Duty: Continuous (S1)
Maximum Liquid Temperature: 40°C
Thermal Protection: Built-in Overload Protection
Protection Class: IP68 (as shown on the nameplate)
Features
High efficiency motor
Low noise & smooth operation
Heavy-duty cast iron pump body
Reliable mechanical seal for long service life
Suitable for continuous operation
Easy installation and maintenance
Applications
Agricultural irrigation
Construction sites
Domestic water supply
Industrial water transfer
Water boosting and circulation
Clean water
