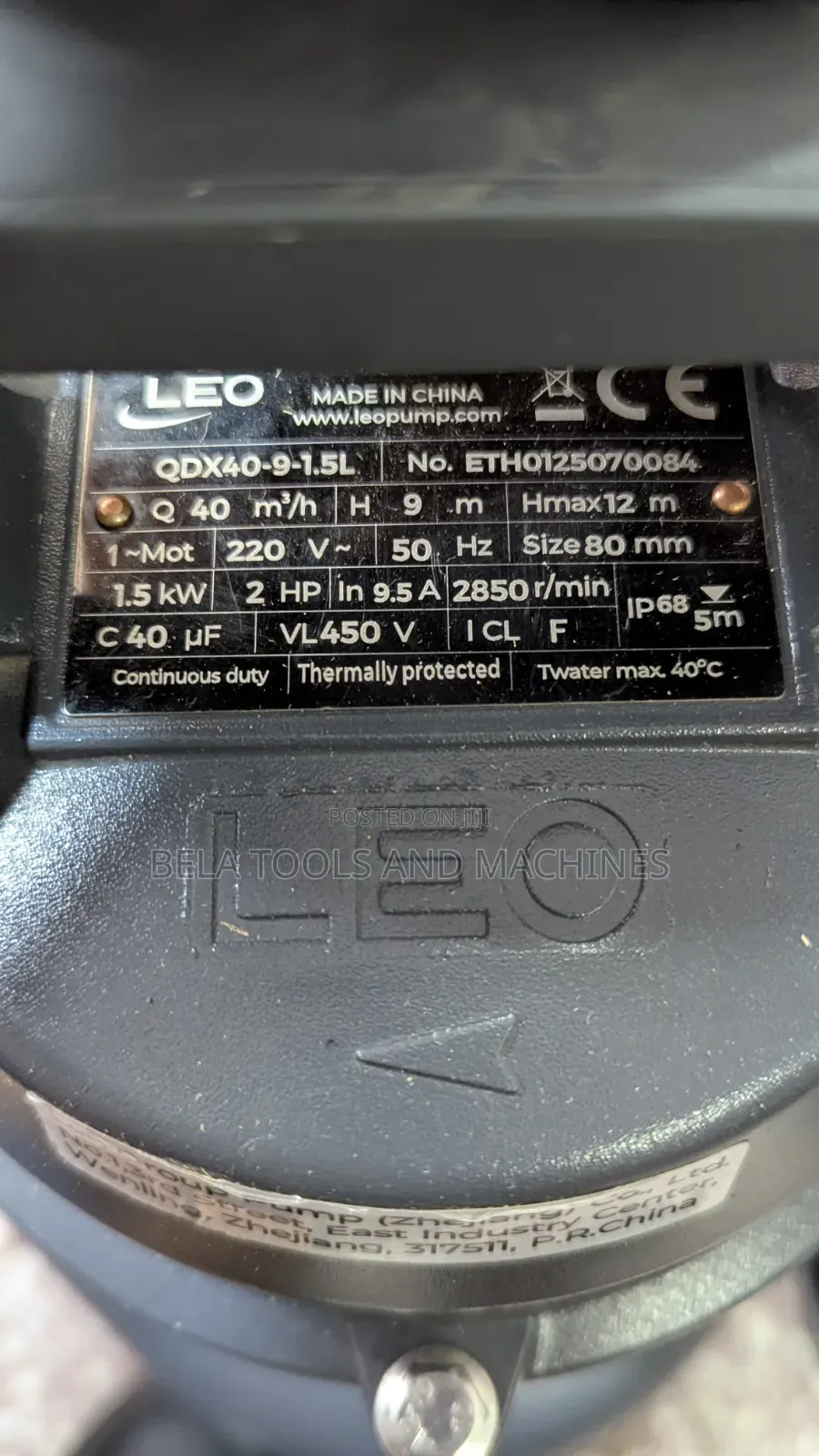

Model: qdx40-9-1.5l
serial number: eth
flow rate (q): 40 m3/h (rated capacity)
rated head (h): 9 m (standard pumping height)
maximum head (hmax): 12 m (maximum height limit)
motor phase (1~mot): single-phase motor
voltage: 220 v ac
frequency: 50 hz
discharge size: 80 mm (3 inches)
power output: 1.5 kw (2 horsepower)
current: 9.5 a (full load current)
speed: 2850 r/min (rotations per minute)
capacitor: 40 μf / 450 v
insulation class (icl): f (up to 155°c)
protection rating: ip68 (dust-tight, waterproof)
max submersion depth: 5 m
