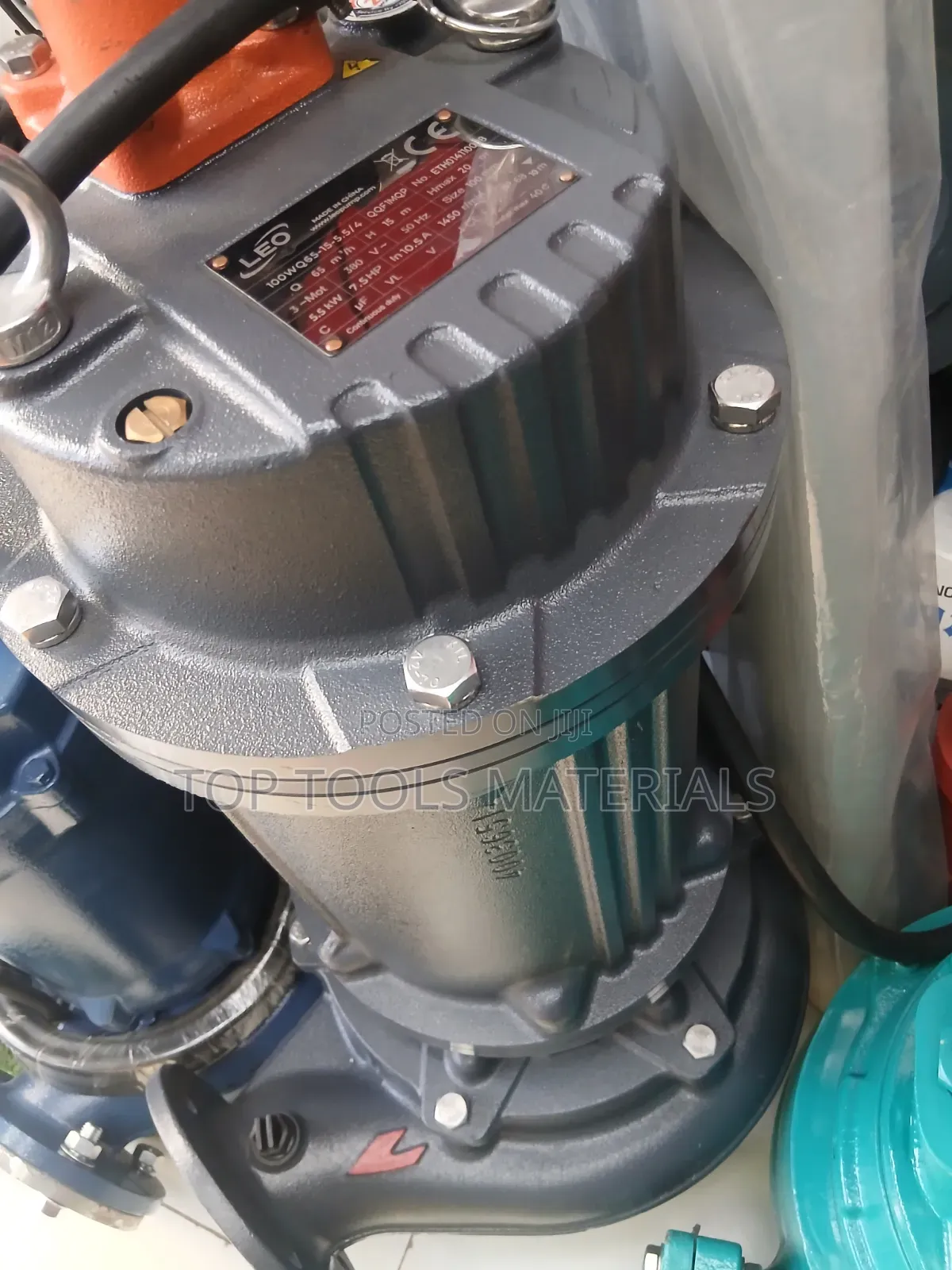

,LEO Submersible SewageLEO Submersible Sewage/Drainage Pump

+1

Leo

Brand

Water Pumps

Type

Brand New

Condition

5.5kW

Pump Power

1450L/min

Pump Productivity

380V

Voltage

100inches

Inlet Size

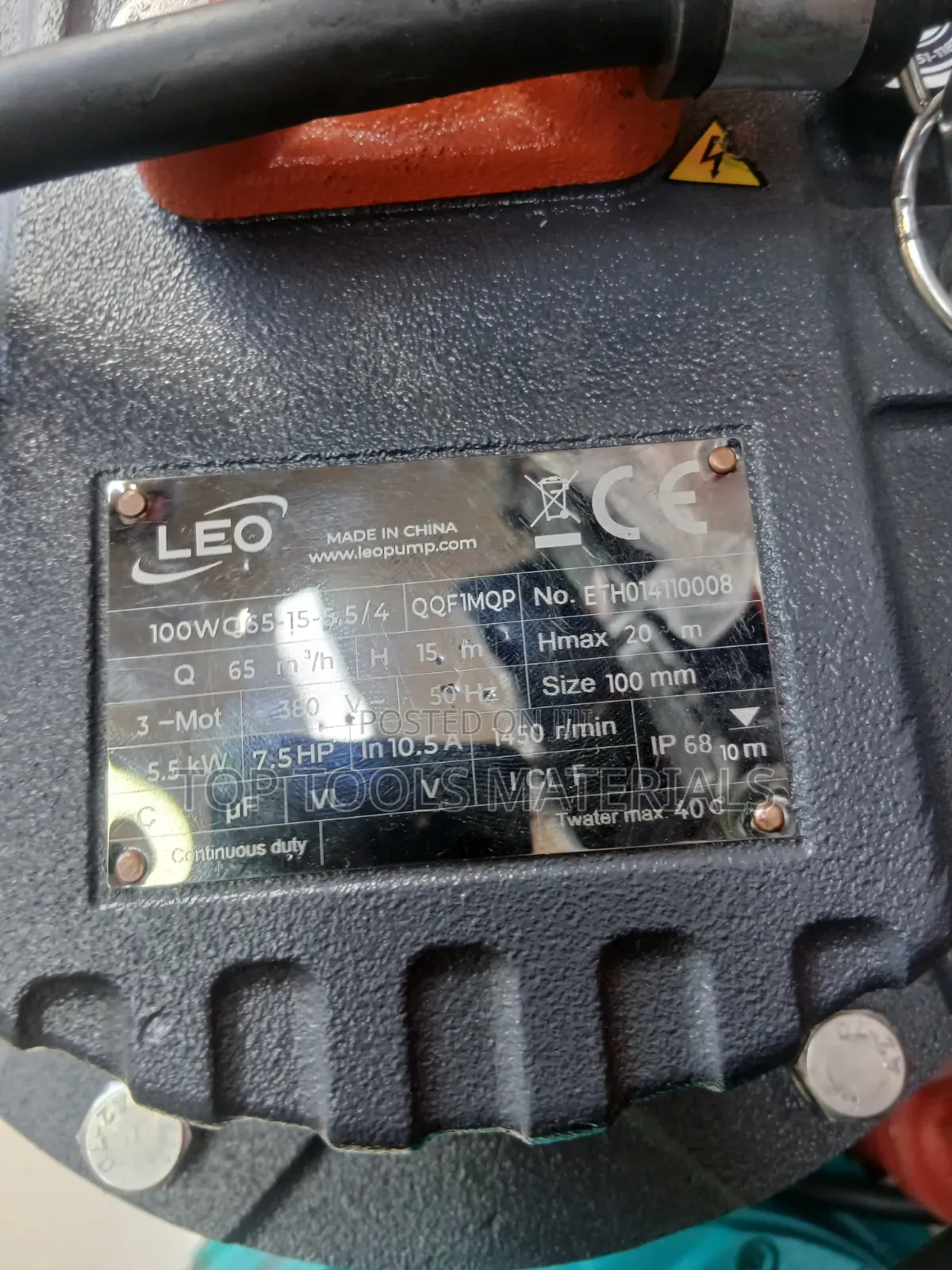

Leo submersible sewageleo submersible sewage/drainage pump (model: 100wq55-15-5.5/4). key specifications from the nameplate • brand: leo (made in china) • model/type: 100wq55-15-5.5/4 (4-inch / 100 mm outlet size) • power output: 5.5 kw / 7.5 hp • flow rate (q): 65 m3/h • rated head (h): 15 m • maximum head (hmax): 20 m • voltage & frequency: 380 v (3-phase ac), 50 hz • rated current (in): 10.5 a • speed: 1450 r/min • insulation class: class f (i cl f) • protection rating: ip 68 ( submersible to a maximum depth of 10 m ) • maximum water temperature: 40°c (twater max 40°c) • duty cycle: continuous duty/drainage pump (model: 100wq55-15-5.5/4). [1] key specifications from the nameplate brand: leo (made in china) model/type: 100wq55-15-5.5/4 (4-inch / 100 mm outlet size) power output: 5.5 kw / 7.5 hp flow rate (q): 65 m3/h
