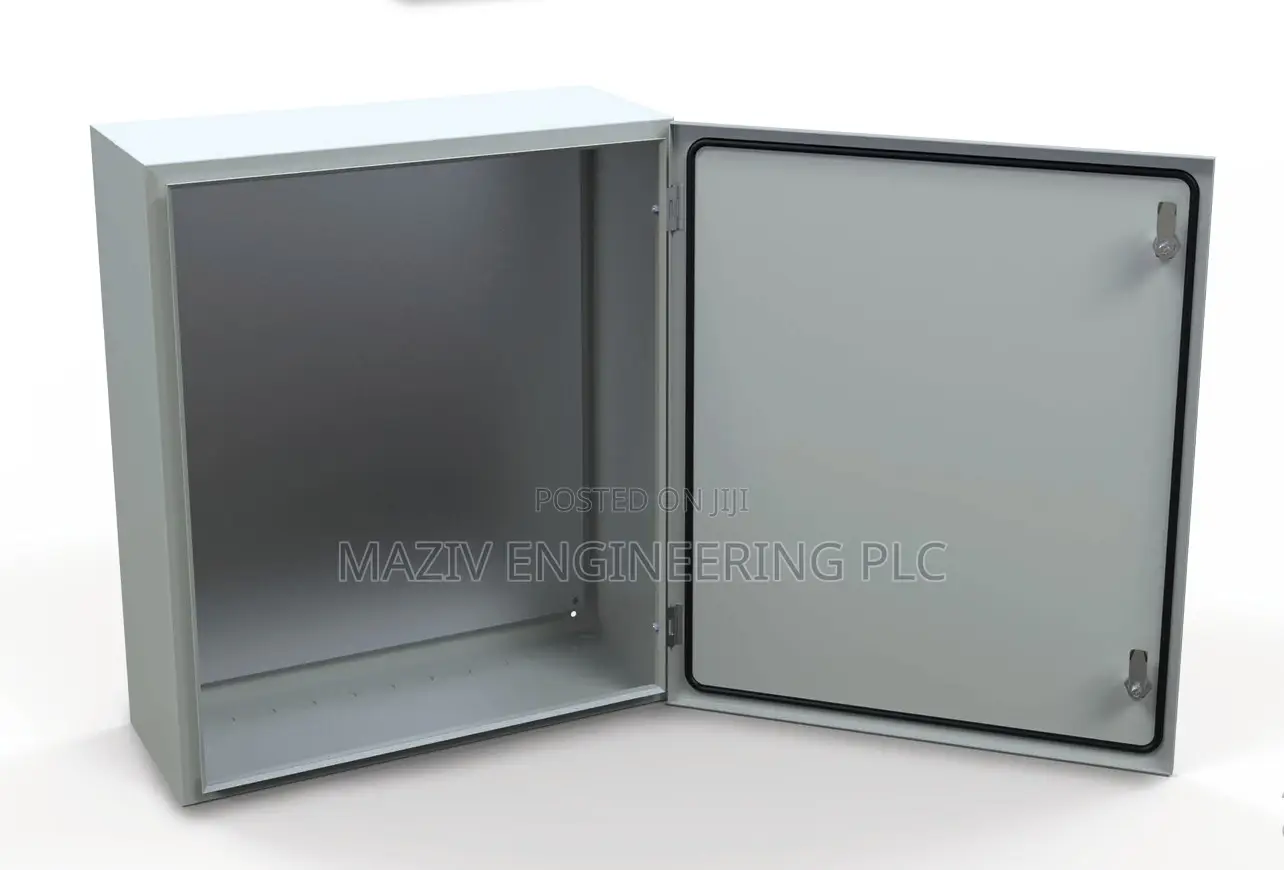

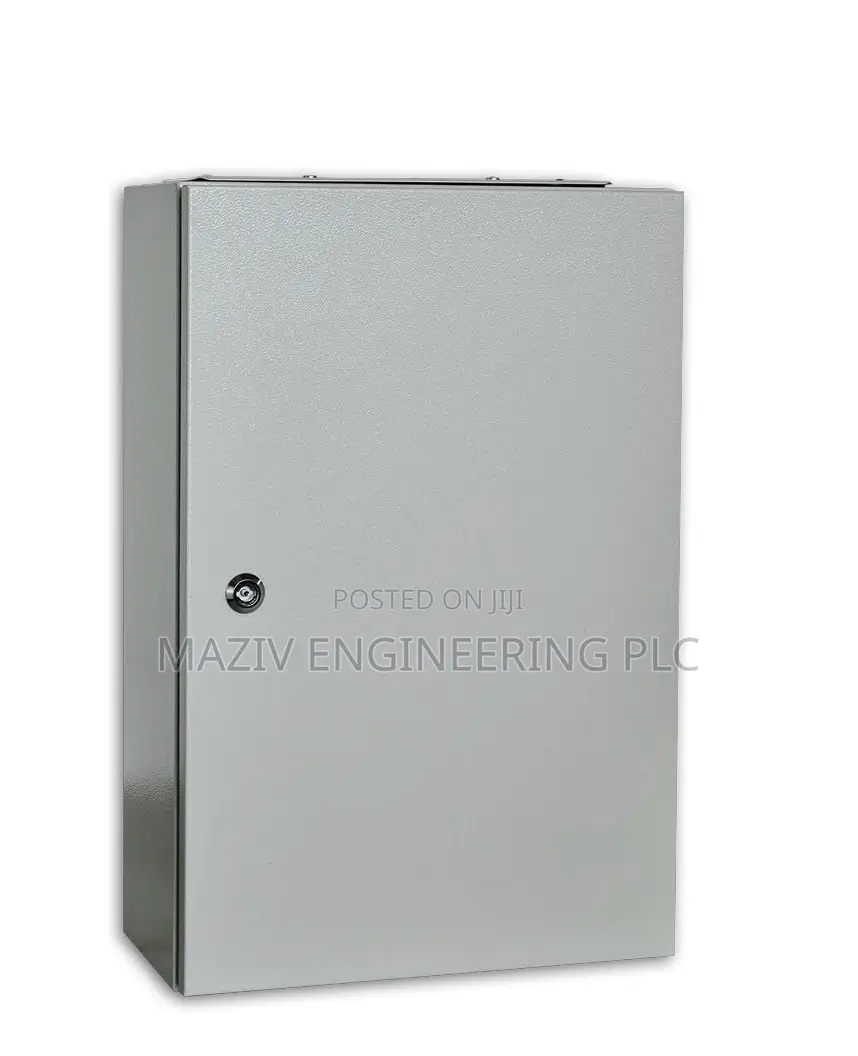

Paint : ral7035w electrostatic powder coating
gasket : poliuretan liquid gasket
available dimension : 400x500x200
door : quarter turn - spring loaded locks and corner hinge or concealed hinge
front door can be open up to 1800
material :
cargass : 1,0 mm<1000≤ 1,2 mm painted steel
door :1,0 mm<1000≤ 1,2 mm painted steel
mounting plate : 1,0 mm<1000≤ 1,2 mm galvanized steel
internal parts: 1,2 mm<1000≤ 1,5 mm galvanized steel
cover plate:1,0 mm painted steel

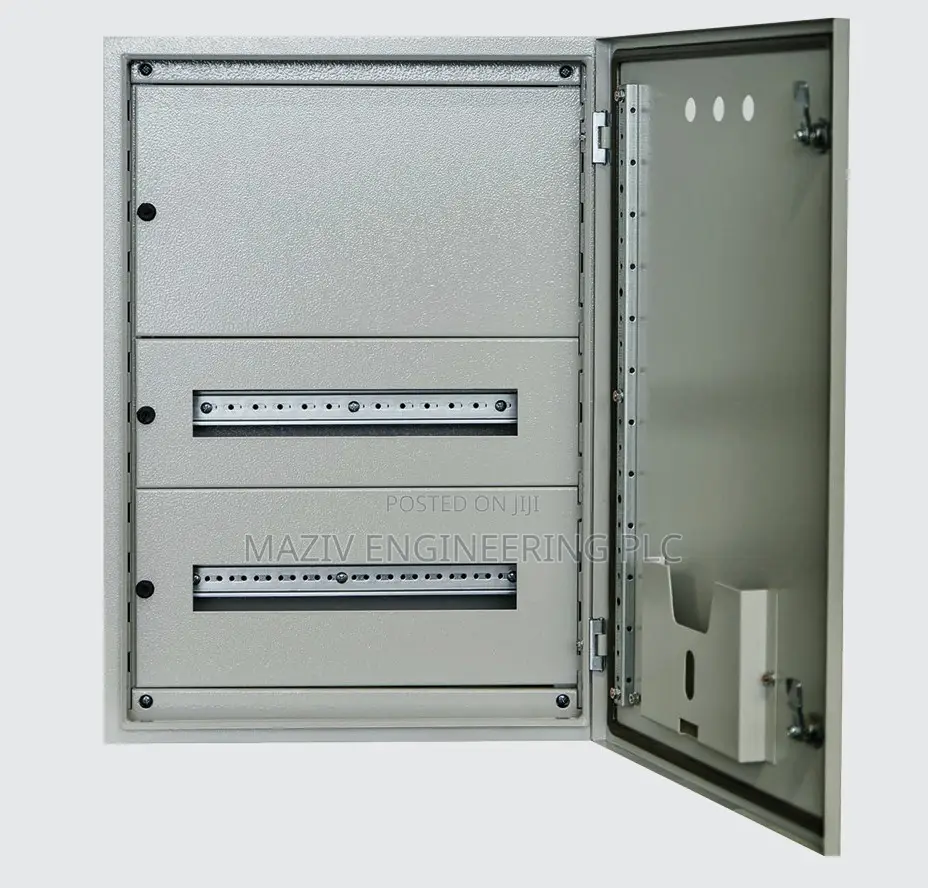

options : the enclosures have the ability to use both mounting plate and interior covers in the same body.
no need to change the enclosure for different applications.
body : welded type. four 7.5 mm diameter holes for wall fixing at the rear part of the enclosure.
mounting plate : supplied as an accessory with multiple size options.
certificates : ce, iec,tse,iso,gost
