M12 Ifm Proximity Sensor
Ifm electronic
ብራንድ
Inductive proximity
አይነት
አዲስ
ሁኔታ

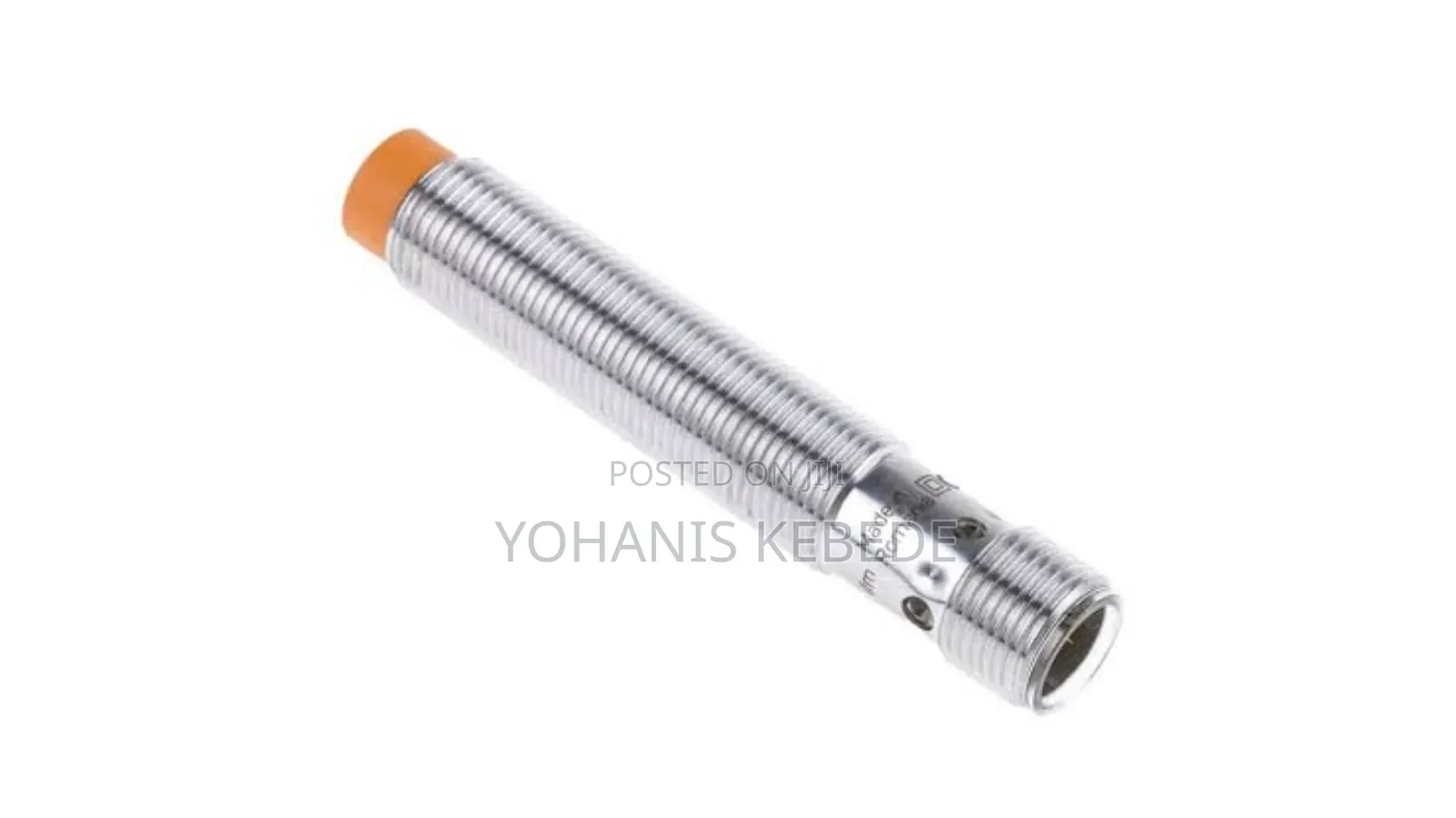

IFM electronic IFS209 is an M12 x 1 threaded barrel inductive proximity sensor designed for industrial automation. It features a flexible PNP/NPN output and a 7 mm sensing range.
Here are the complete technical specifications for this sensor.
Technical Specifications
Parameter Specification
Product Type Inductive Proximity Sensor
Housing Size M12 x 1 threaded barrel
Housing Length 70 mm
Housing Material Brass with a white bronze-coated finish
Supply Voltage 10... 30 V DC
Output Type PNP/NPN (programmable/selectable), Normally Open (NO)
Sensing Range 7 mm (non-flush mountable)
Output Current 100 mA DC (continuous)
Switching Frequency 500 Hz
Protection Rating IP67 (dust-tight and protected against immersion)
Electrical Connection 1 x M12 connector with A-coding and gold-plated contacts.
