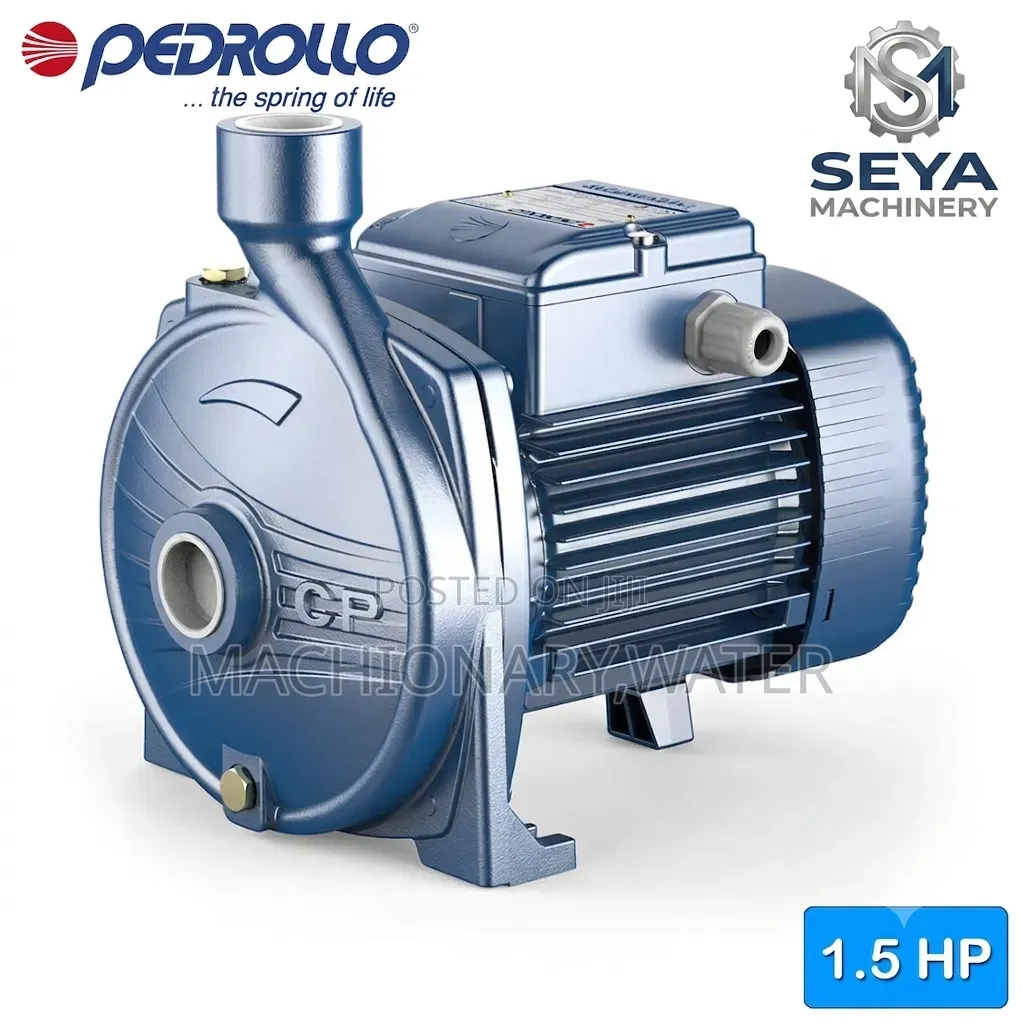

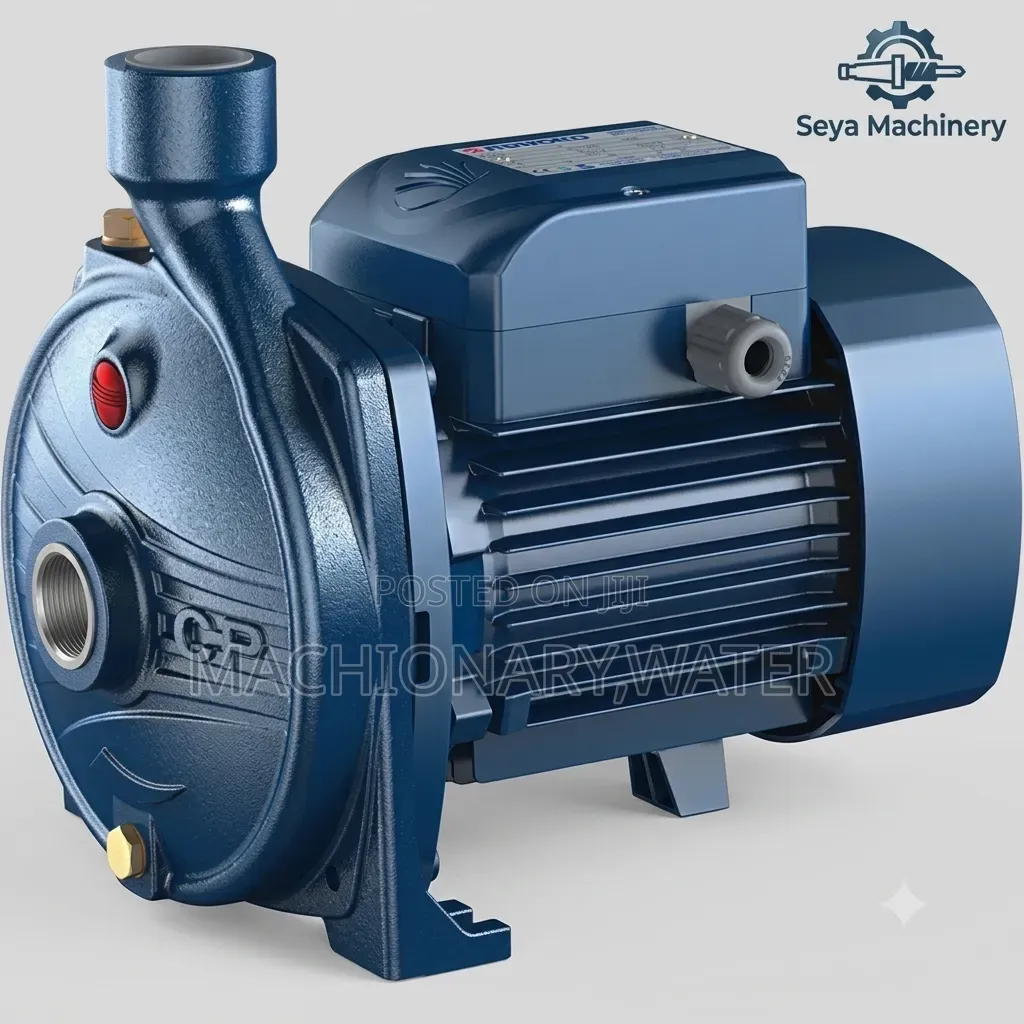

pedrollo cp centrifugal water pump
model: cp series (1.5 hp)
power supply: single phase (220–240v, 50hz)
specifications
motor power: 1.5 hp (1.1 kw)
pump type: single-impeller centrifugal pump
maximum flow rate: 160 l/min
maximum head: 32 m (typical 1.5 hp cp 160c model)
maximum suction lift: 7 m
inlet size: 11⁄2 inch
outlet size: 1 inch
protection class: ipx4
liquid temperature: -10°c to +90°c
ambient temperature: up to +40°c
maximum working pressure: 6 bar
applications
domestic water supply
garden & farm irrigation
clean water transfer
civil and light industrial use
made in italy – high efficiency, reliable performance, low noise, and long service life.
