አዲስ አበባ, አራዳ, 04/06
61 እይታዎች

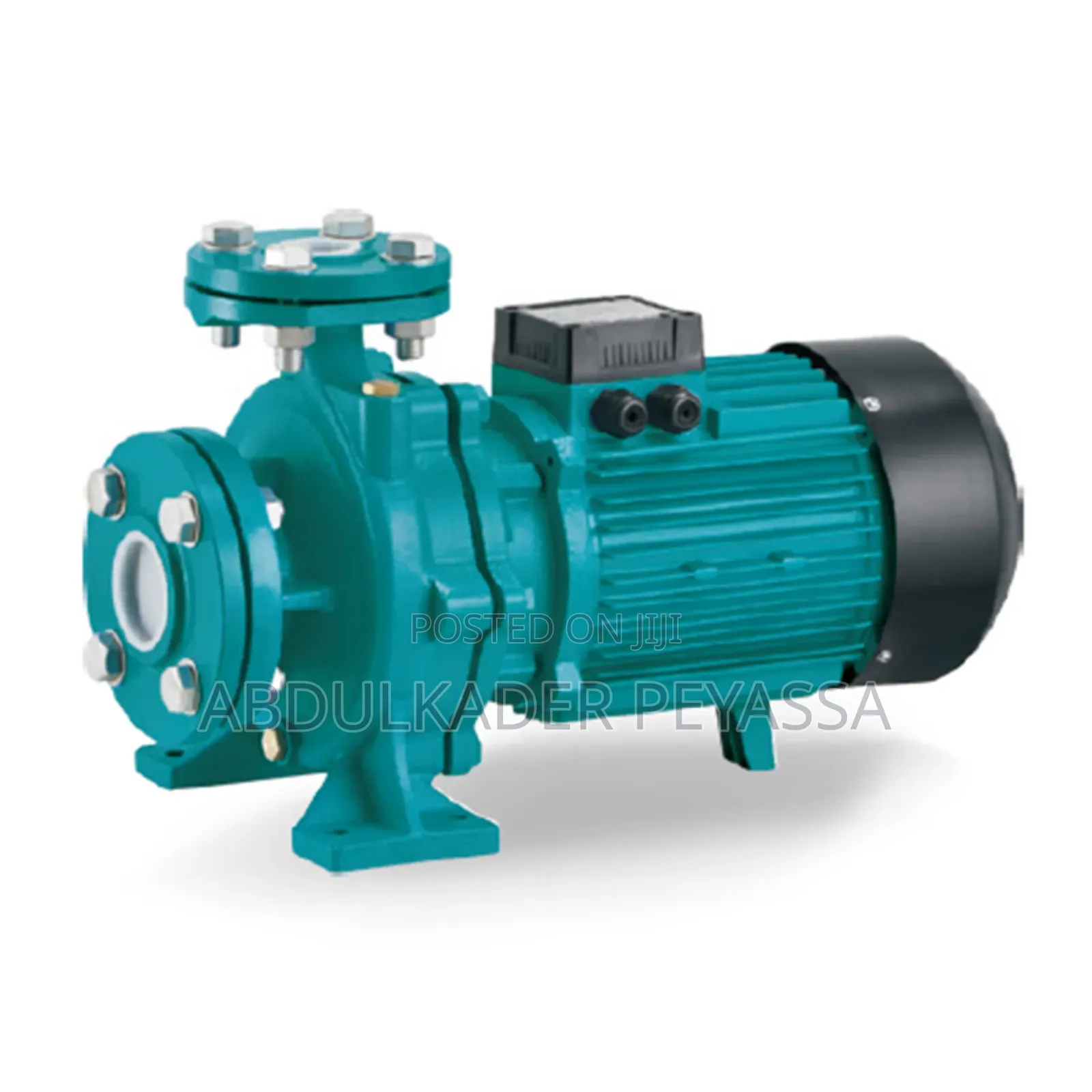

Leo Centrifugal Pump 7.5hp
Leo
ብራንድ
የውሃ ፓምፕ
አይነት
አዲስ
ሁኔታ
5kW
የፓምፕ ኃይል
500L/min
የፓምፕ እንቅስቃሴ
40bar
ግፊት
7
የፈረስ ኃይል
380V
ቭልትጅ
2inches
የመግቢያ መጠን
1inches
የመውጫ መጠን
Application of XST Standard Centrifugal Pump:
Cieculation and transfer of clean ,chemically non-aggressive water and other liquids
Wather supply & irrigation
Water circulation in air conditioning systems
Operating Conditions of XST Standard Centrifugal Pump:
- Delivery: up to 400l/min
- Head: up to 79 m
- Liquid temperature: - 10 to 85°C
- Max. operating pressure: 12 bar (PN12)
- Impeller: AISI 304/ HT 200
- Mechanical seal in compliance with DIN 24960
- Lubricated by internal recirculating liquid
- Counter flange available on request
XST Standard Centrifugal Pump Motor Features:
- Closed construction, external ventilation
- Insulation class: F
- Protection class: IP 54
- Performance in compliance with CEI 2-3 (IEC 34.1)
- Max. ambient temperature: +40°C
- Overload protection
ETB 118,000
