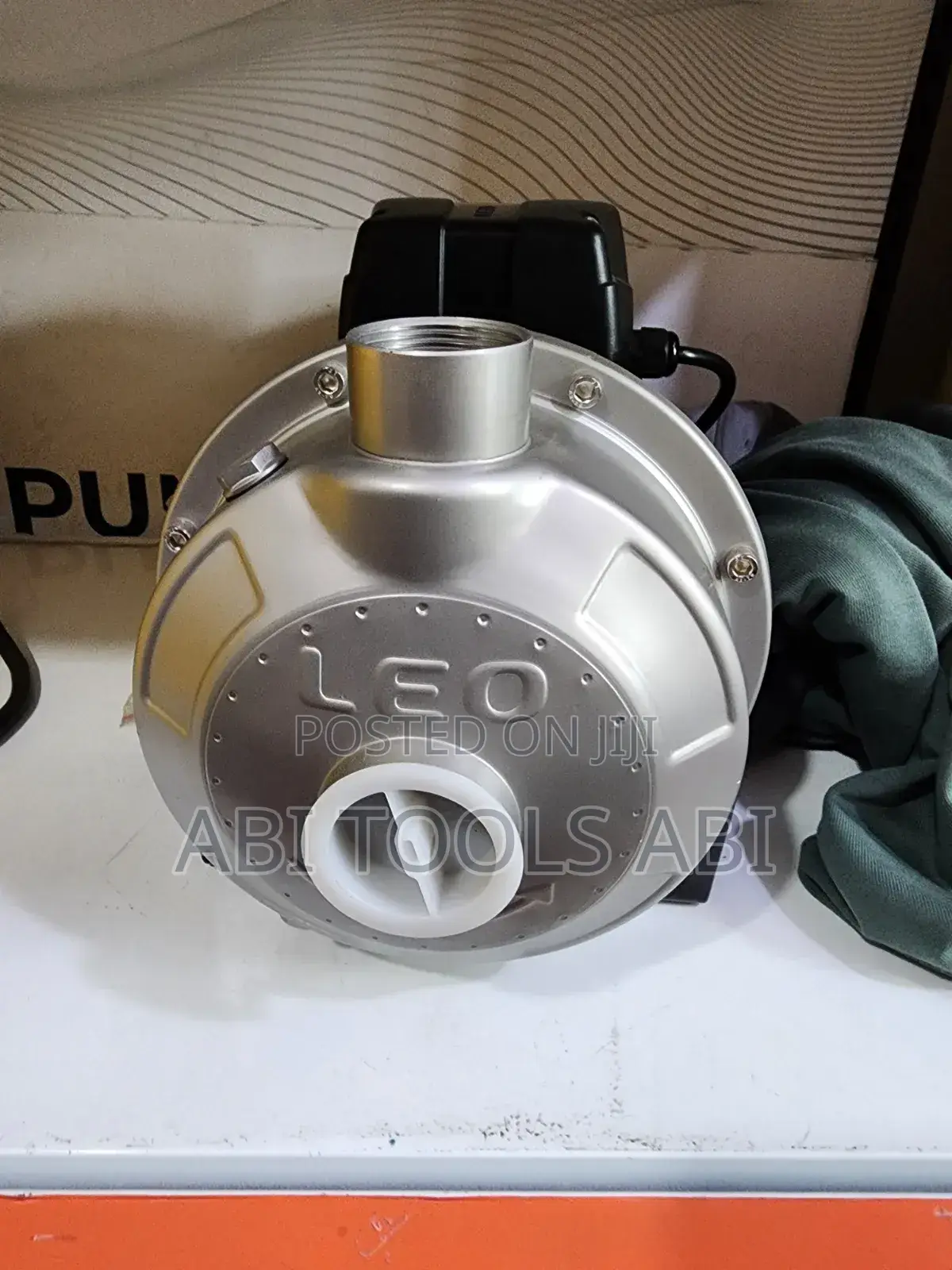

Leo Amsm210/1.5 Centrifugal Water Pump
Leo
ብራንድ
Leo
አይነት
አዲስ
ሁኔታ
LEO AMSm210/1.5 centrifugal water pump, which contains the technical specifications of the motor and pump mechanism.
Because the image is oriented upside down, the details have been rotated and transcribed below for easy reading.
Model: AMSm210/1.5
Flow Rate (Q): 120–300 Liters per minute (l/min)
Total Head (H): 23.5–18 Meters (m)
Maximum Head (Hmax): 25 Meters (m)
Minimum Head (Hmin): 18 Meters (m)
Maximum Liquid Temperature (Twater max): 85°C
Electrical & Motor Data
Power Output (Pout): 1.5 Kilowatts (kW) / 2.0 Horsepower (HP)
Input Current (In): 8.5 Amperes (A)
Voltage (V~): 220–240 Volts (Single-Phase AC)
Frequency (Hz): 50 Hertz
Rated Speed (min−1): 2850 Revolutions per minute (RPM)
Capacitor (C): 40 Microfarads (μF) / 450
