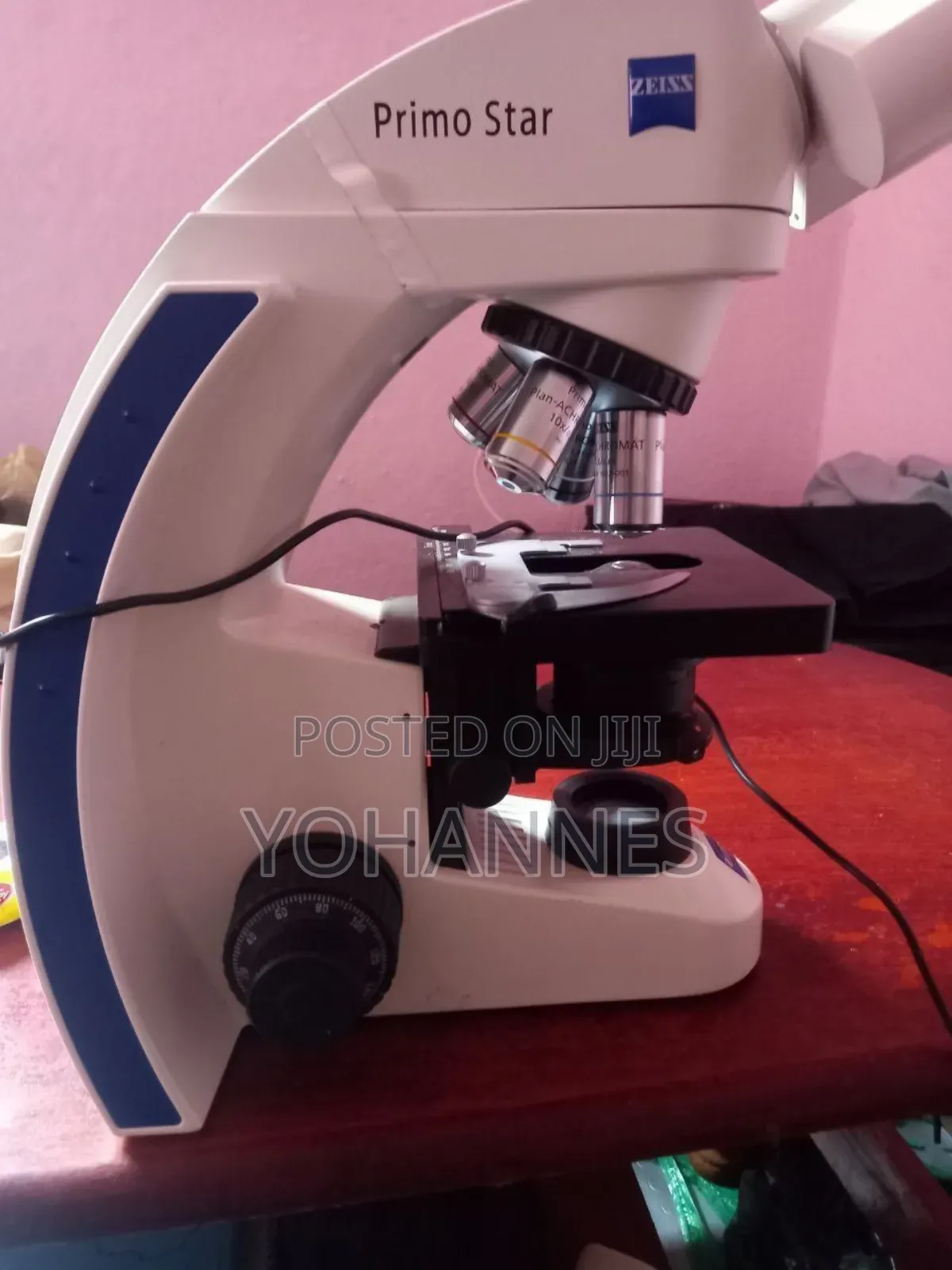

Primo Microscope
ማያክሮስኮፕ
አይነት
የተጠቀመ
ሁኔታ
20degrees
እይታ መስክ
100X
Maximum እሴት
140mm
የመድረክ ስፋት
135mm
የመድረክ ጥልቀት
30mm
የእንቅስቃሴ ክልል
61cm
ቁመት
60cm
ስፋት
75cm
ጥልቀት
8kg
ክብደት
Optical system: Color-corrected infinity optics
Parfocal distance: 45 mm
Tube length: 180 mm
Two stand variant: Fixed-Koehler
Magnifications: 40x to 1000x for visual observation
Eyepiece tubes: Swiveling Siedentopf tube with upper and lower position, upper position offers approx. 40 mm extra viewing height, Adjustable interpupillary distance: 48 mm-75 mm, Tube can be rotated 360o, 30o viewing angle (ergonomic angle), Binocular tube
Eyepieces: WF 10x/18 Br. foc., WF 10x/20 Br. foc., Eyepiece pointer can be retrofitted
Nosepiece:4x, inclined backwards, 4x, reversed
Condenser: Abbe condenser 0.9/1.25 Holder for phase contrast and darkfield sliders, field view 18 mm (Fixed-Koehler)
Area of stage: w x d: 140 mm x 135 mm
Travel range: w x d: 75 mm x 30 mm
Z-drives Fine drive: 0.3 mm/rot., Coarse drive: 4 mm/rot., Total travel range: 15 mm
ETB 150,000
