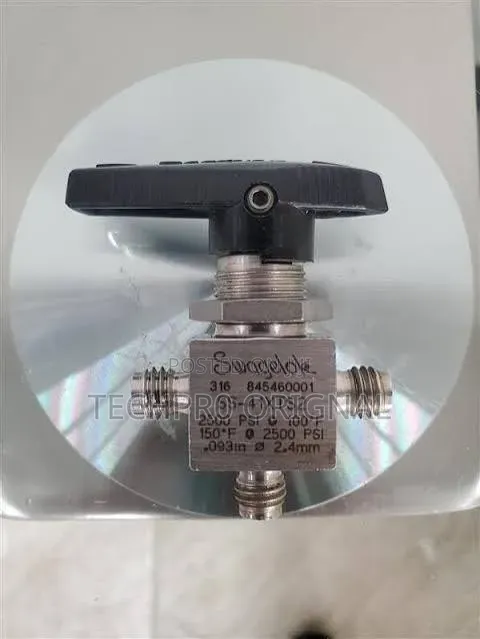

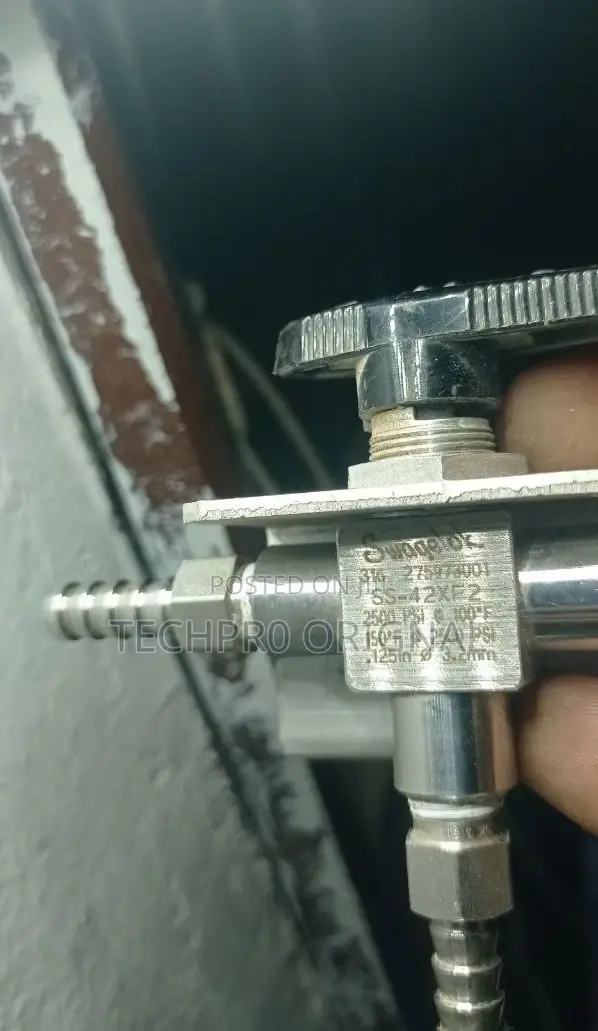

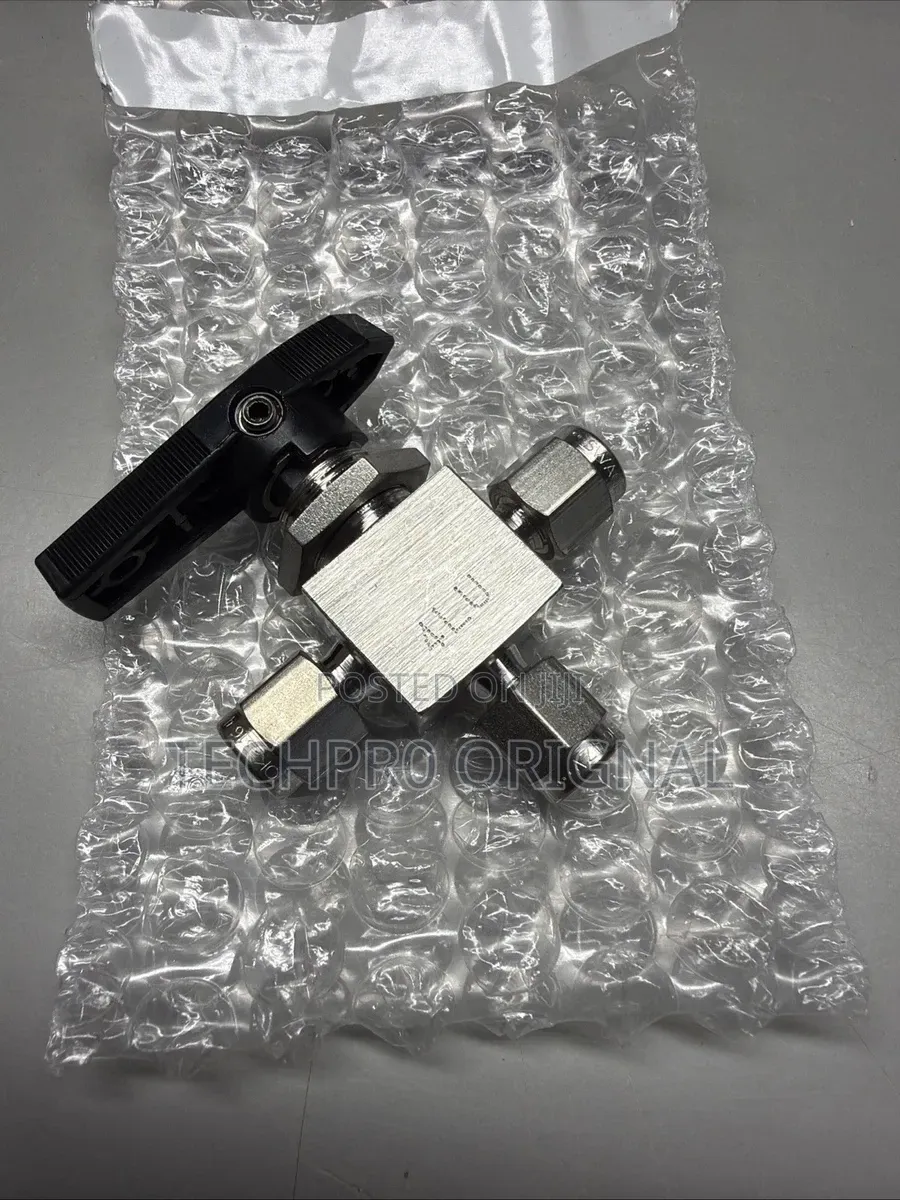

SWAGELOK 3-Way Ball Valve 1/8" T, SS-42XF2
አዲስ
ሁኔታ
ሌላ
አይነት
Technical SpecificationsPart Number: SS-42XF2 (cross-references to the updated SS-42GXF2 designation).Body Material: 316 Stainless Steel. Connection Size & Type: 1/8-inch Female NPT (National Pipe Thread).Flow Capacity : 0.30.Orifice Size: 0.125 inches (3.2 mm).Pressure & Temperature Ratings: Maximum pressure: 2500 PSI (up to 3000 PSI under specific configurations) at 100°F (37°C).High-temperature threshold: 150°F at 2500 PSI, as stamped on the valve body. Design & Operation3-Way Switching: This design features a side-to-side switching flow path. It is built to route fluid or gas from a single bottom inlet to either of the two side outlets. Directional Handle: The top manual lever handle acts as a physical indicator. The direction the handle is pointed corresponds directly to the open internal flow orifice path
