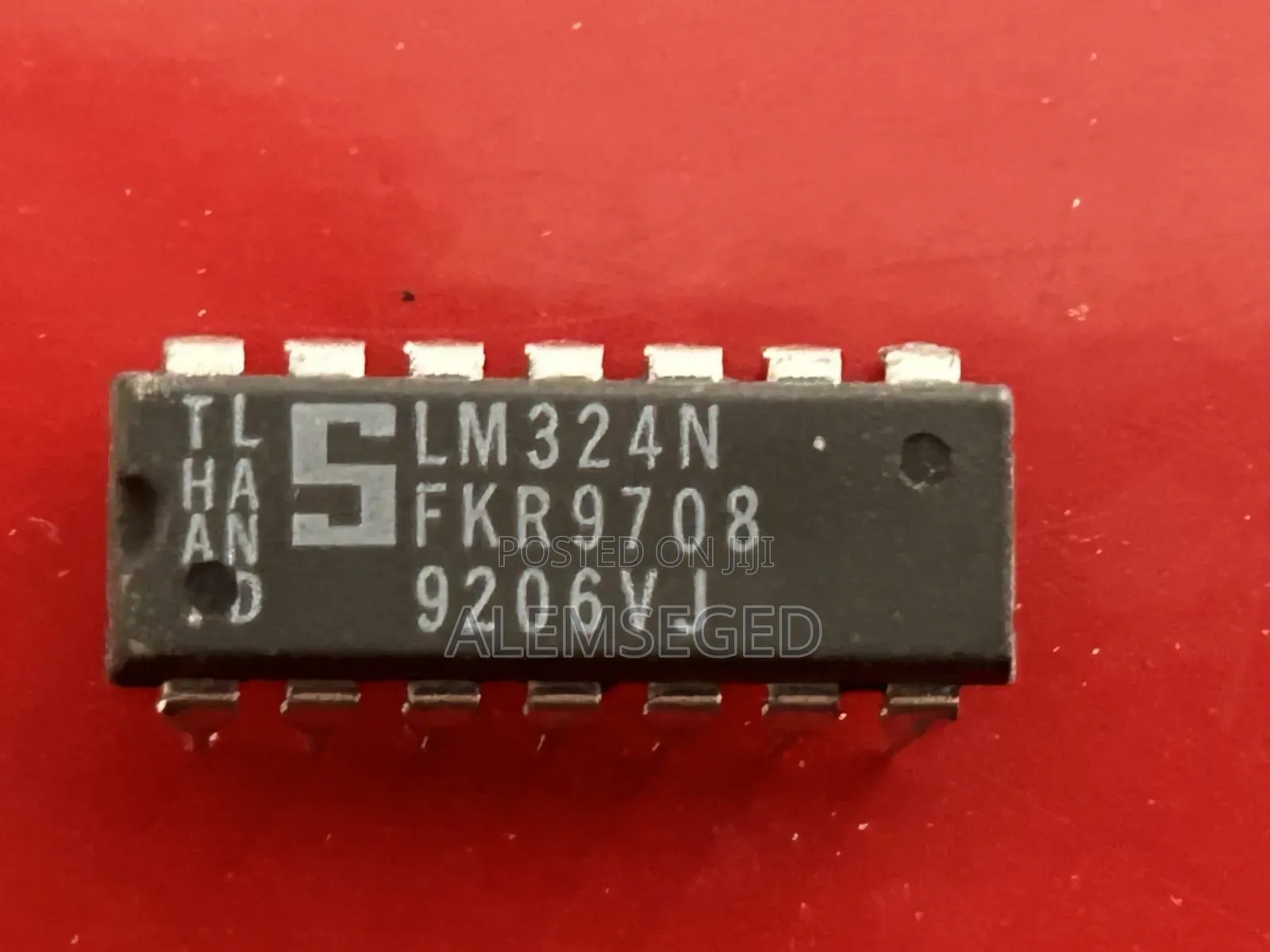

Lm324n Integrated Circuit
Audio & Music Accessories
Type
Brand New
Condition
LM324N
Brand
Description
These circuits consist of four independent, high gain, internally frequency compensated operational amplifiers. They operate from a single power supply over a wide range of voltages.
Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
■ Wide gain bandwidth: 1.3MHz
■ Input common-mode voltage range includes ground
■ Large voltage gain: 100dB
■ Very low supply current/ampli: 375μA
■ Low input bias current: 20nA
■ Low input offset voltage: 5mV max. (for more accurate applications, use the equivalent parts LM124A-LM224A-LM324A which feature 3mV max.)
■ Low input offset current: 2nA
■ Wide power supply range:
Single supply: +3V to +30V
Dual supplies: ±1.5V to ±15V
