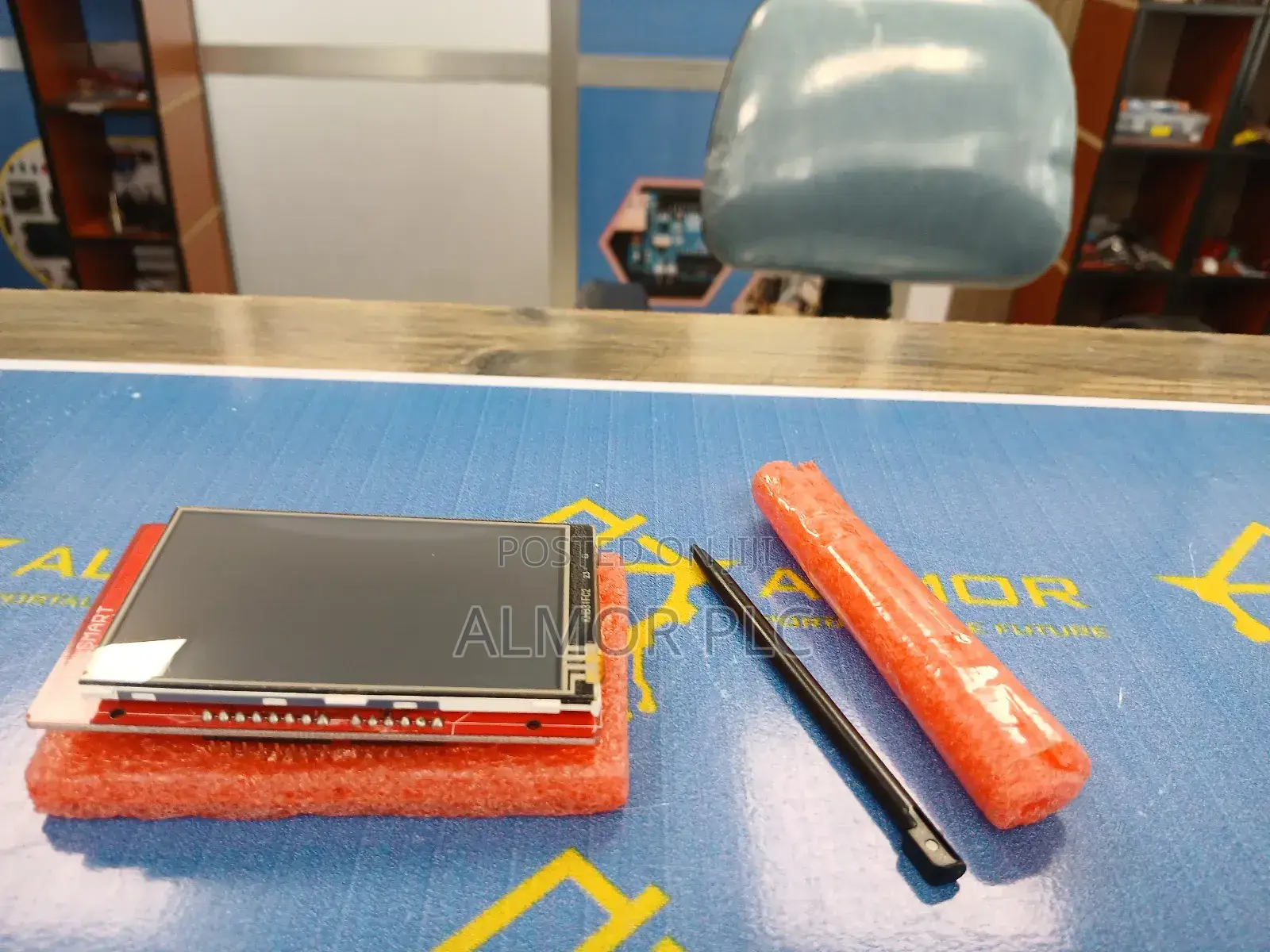

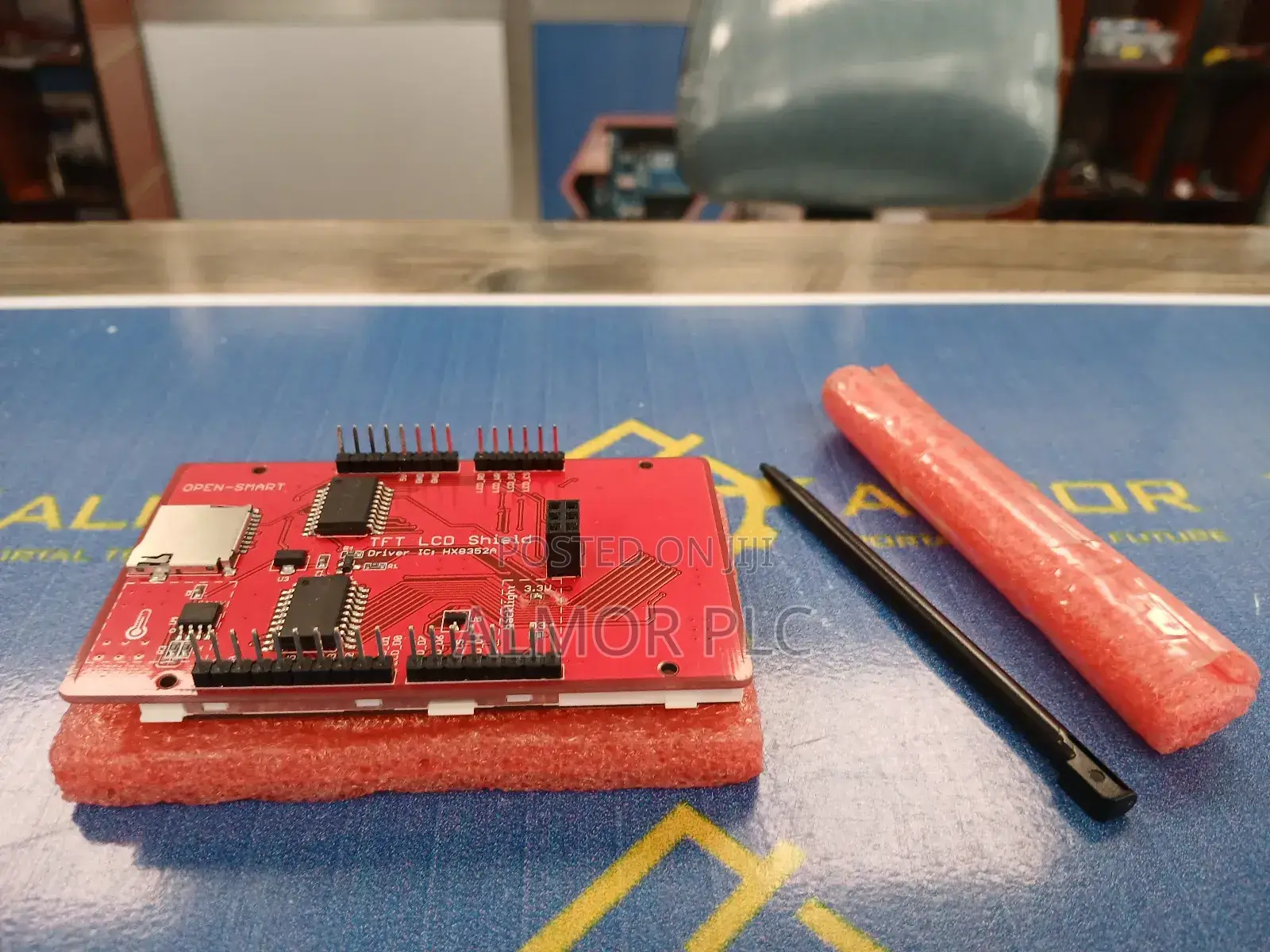

3.5 inch TFT LCD Touch-Screen
Module 480 x320 Resolution
- 3.5" diagonal LCD TFT display
- 320x480 resolution, 18-bit (262,000) color capable - our code uses only 16-bits since its faster.
- 8 bit digital interface, plus 4 or 5 control lines (12 pins minimum) or SPI mode with 4 or 5 SPI data/control lines (4 pins minimum) - not including the touch screen.
- 5V compatible! Use with 3.3V or 5V logic such as an Arduino
- Onboard 3.3V @ 150mA LDO regulator
- 6 white LED backlight with DC/DC constant-current boost. You can PWM dim the backlight
- 1x20 headers for easy breadboarding
- 4-wire resistive touchscreen
